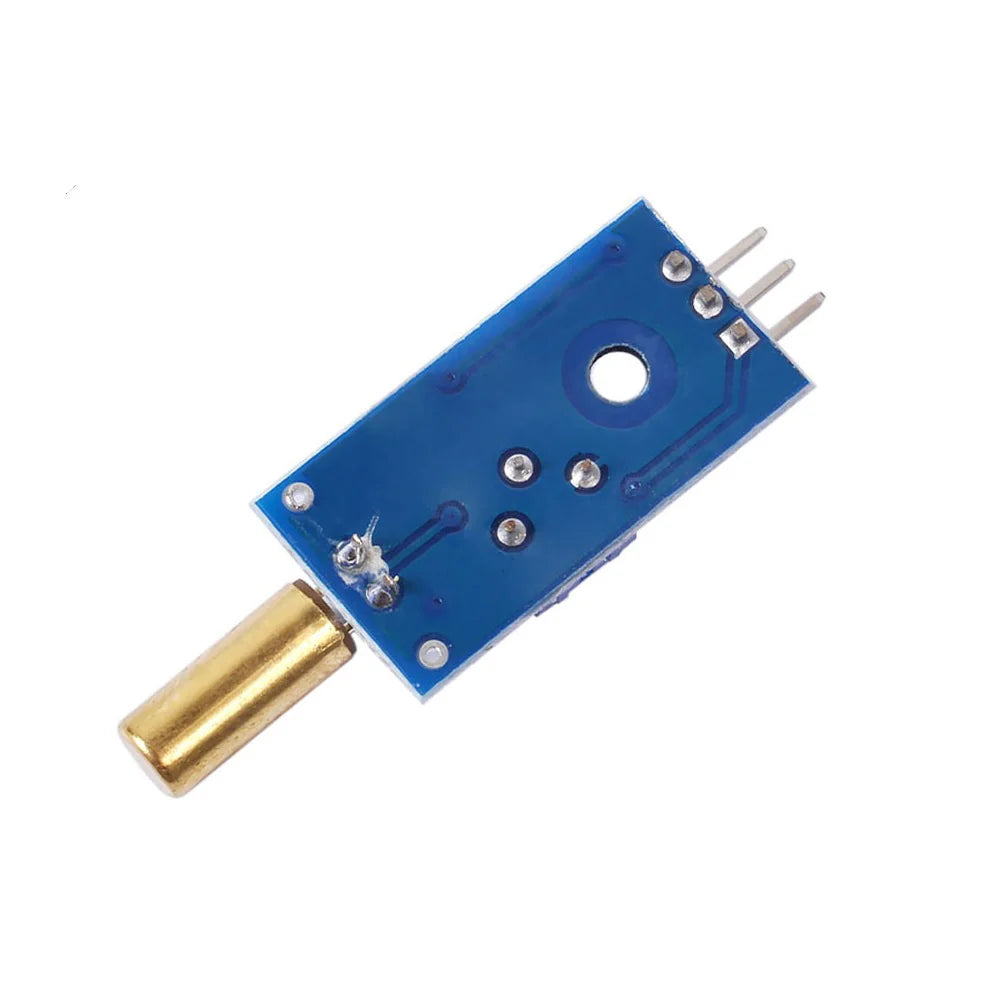

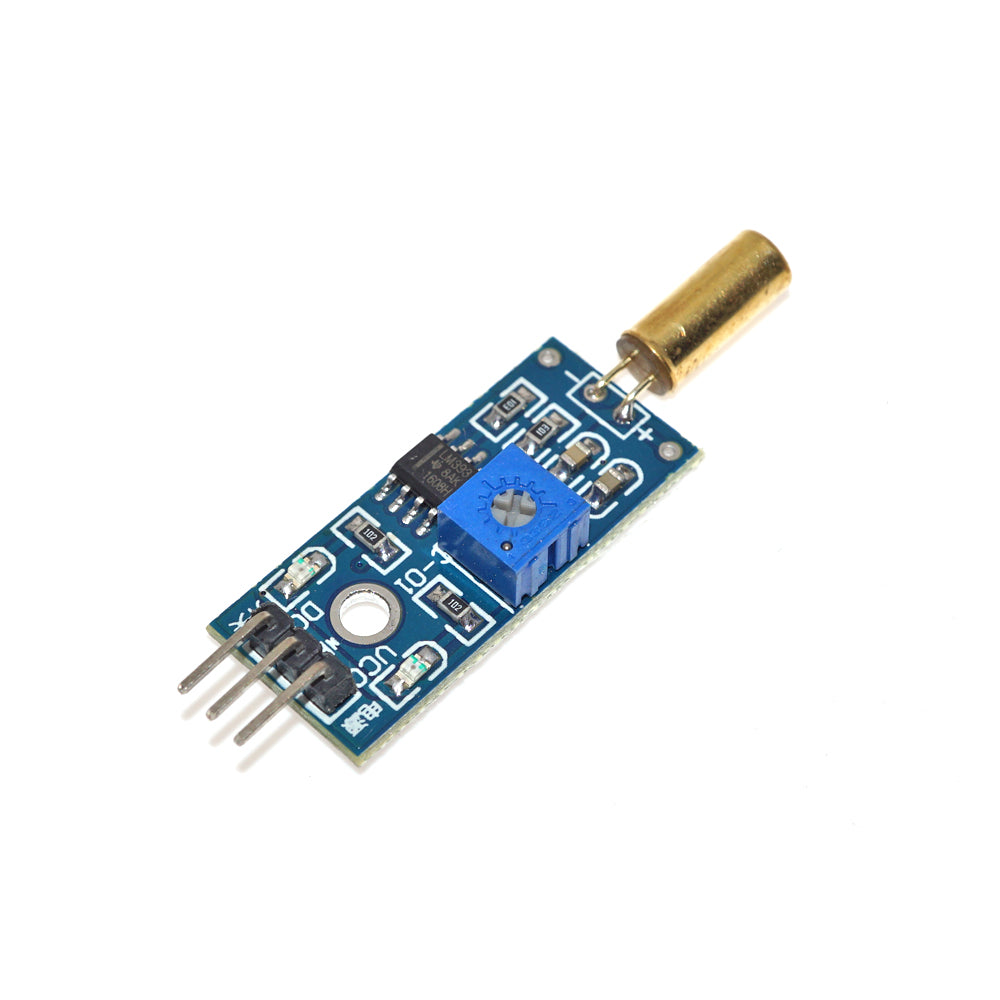

SW520D Tilt Sensor Module

K-TECHNICS
In stock
KSh120.00

Secure checkout

Friendly support

Hassle-free returns

The SW520D Tilt Sensor Module is a digital roller-ball switch used to detect physical orientation or movement. It acts as a binary switch (ON/OFF) that triggers when tilted past a specific threshold (typically greater than ±15 degrees). It is ideal for microcontrollers like Arduino, ESP32, and Raspberry Pi.
Technical Specifications
  • Operating Voltage: 3.3V to 5V DC
  • Onboard IC: LM393 Voltage Comparator (ensures a clean signal)
  • Output Type: Digital switching signal (Logic 0 or 1)
  • Trigger Angle: Greater than ±15 degrees
  • Internal Component: Dual metal conductive balls inside a sealed cylinder
Pin Configuration
  1. VCC: Connects to 3.3V - 5V power
  2. GND: Connects to ground
  3. DO (Digital Output): Outputs LOW when upright (circuit closed) and HIGH when tilted (circuit open)
  4. AO (Analog Output): Optional pin that provides real-time voltage variation
Working Principle
  • Upright: Metal balls roll down to touch the internal terminals, bridging them to close the circuit.
  • Tilted: Gravity pulls the balls away from the pins, breaking contact and opening the circuit.
  • Calibration: An onboard potentiometer allows you to adjust sensitivity and filter out noise.
