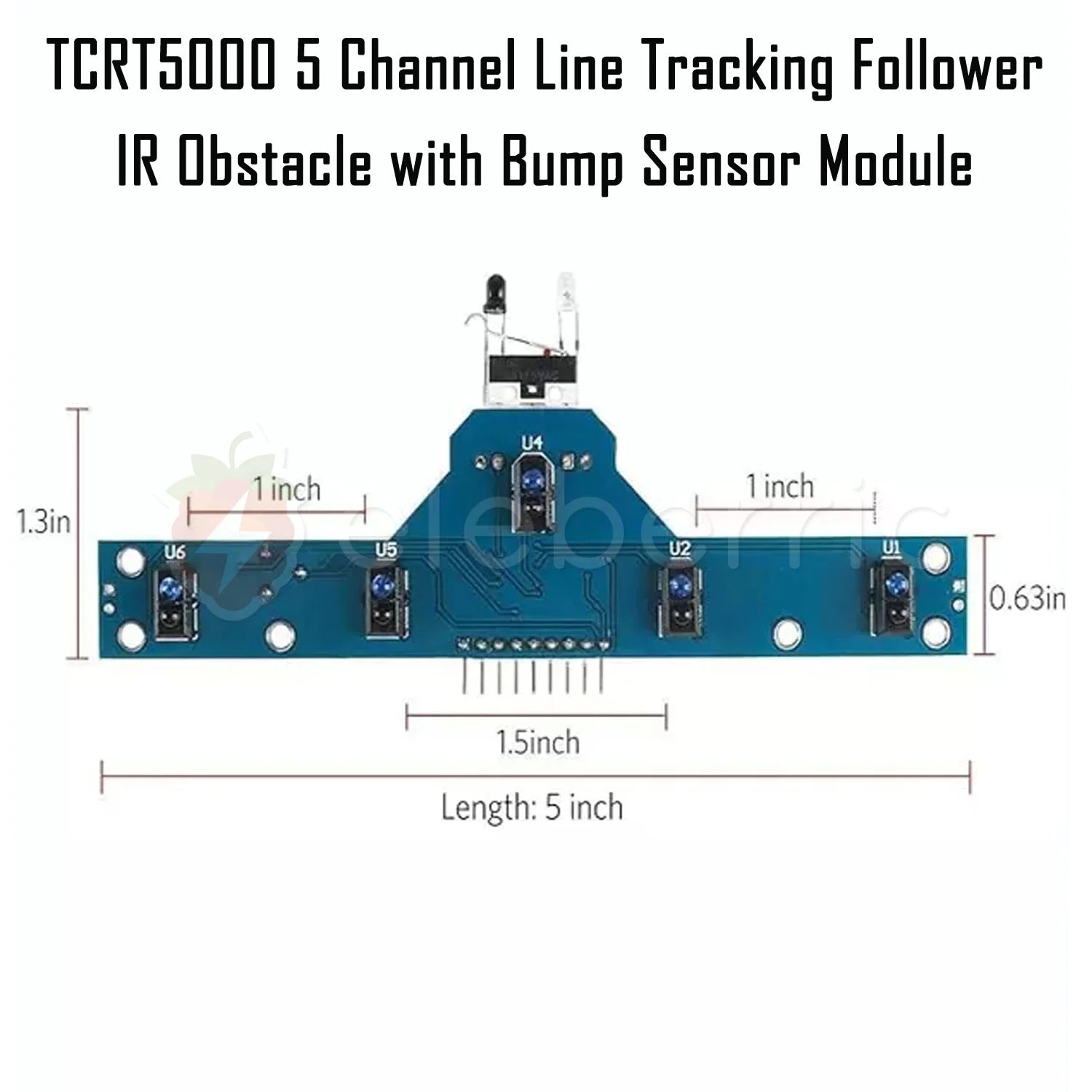

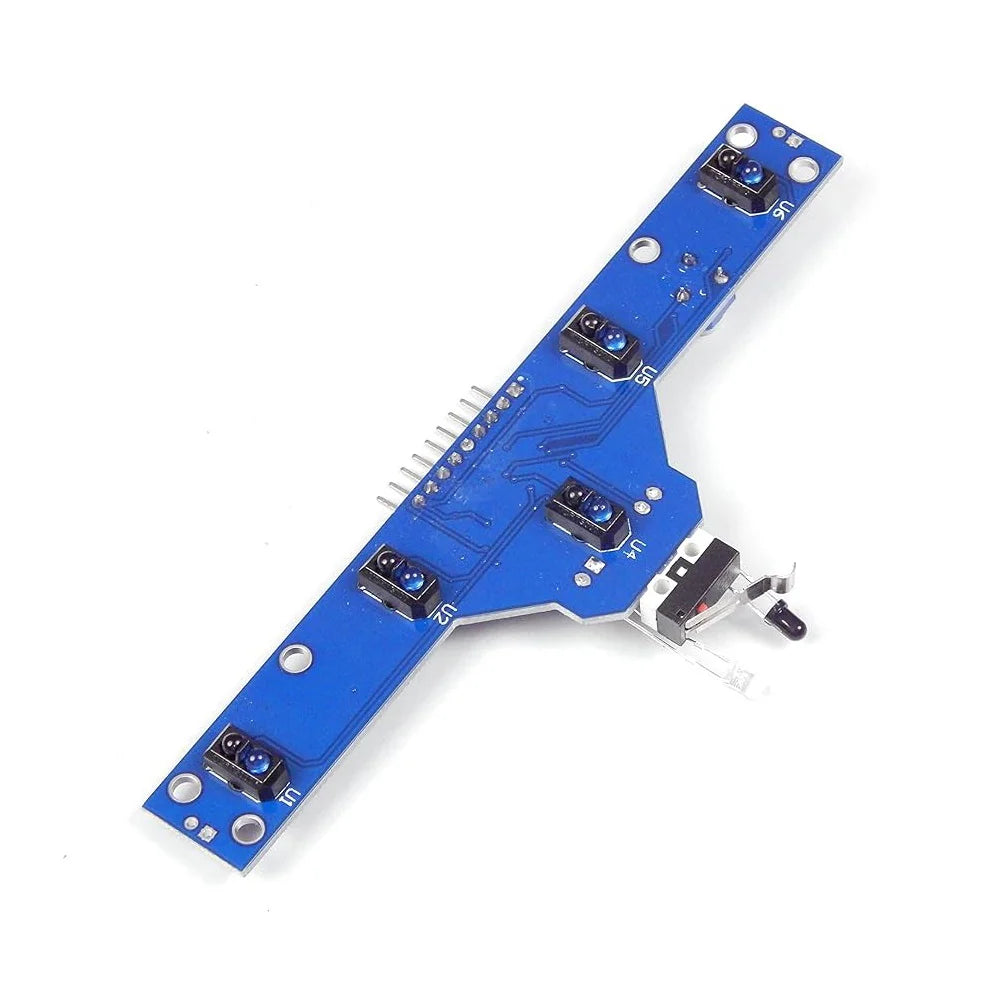

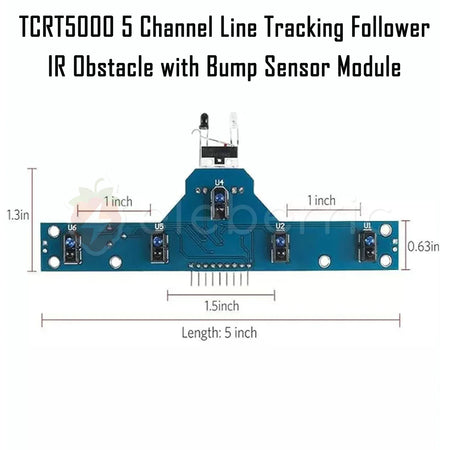

TCRT5000 5 Channel Line tracker finder

K-TECHNICS
In stock
KSh2,000.00

Secure checkout

Friendly support

Hassle-free returns

The TCRT5000 5-Channel Line Tracker is an infrared sensor array designed for line-following robots and maze solvers. It detects contrasting surfaces by emitting and measuring reflected infrared light.
Key Specifications
  • Voltage: 3.3V to 5V DC.
  • Range: 1 mm to 25 mm (3 mm optimal).
  • Output: Digital signals (High/Low).
  • Indicators: Onboard LEDs show sensor status.
Logic States
  • White Surface: High reflection, outputs Low (0), LED turns on.
  • Black Line: Light absorbed, outputs High (1), LED turns off.
Pinout
  • VCC / GND: Power connections.
  • OUT1 to OUT5: Digital outputs for each sensor channel.
