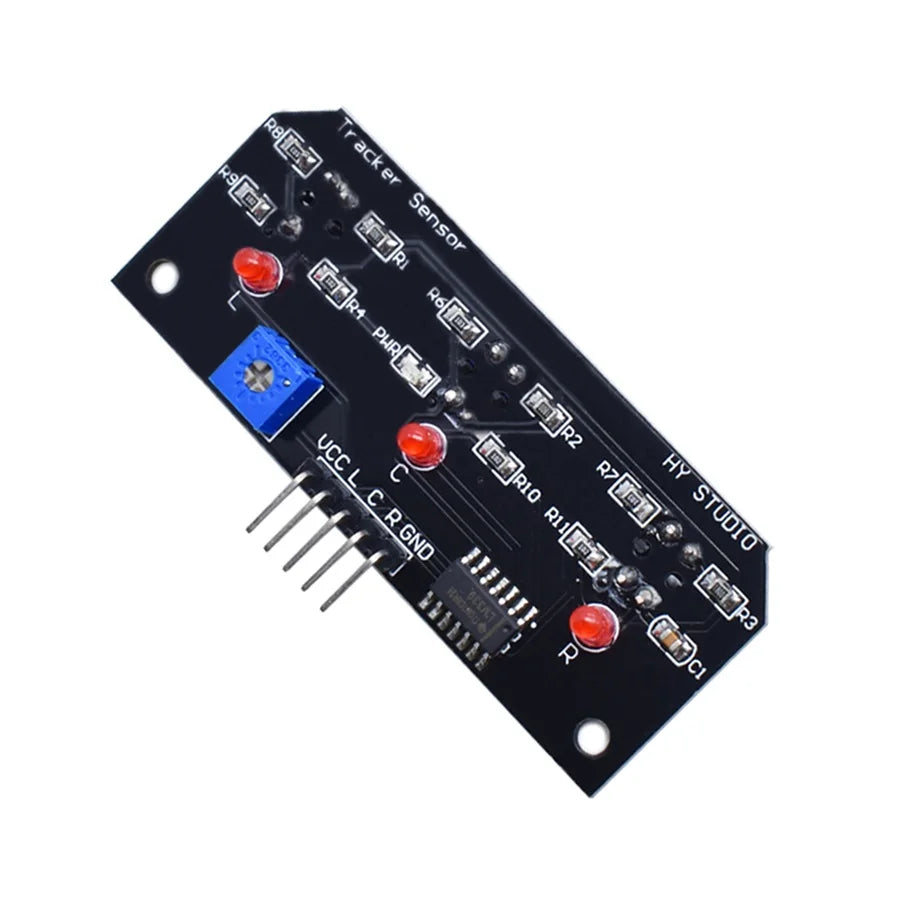

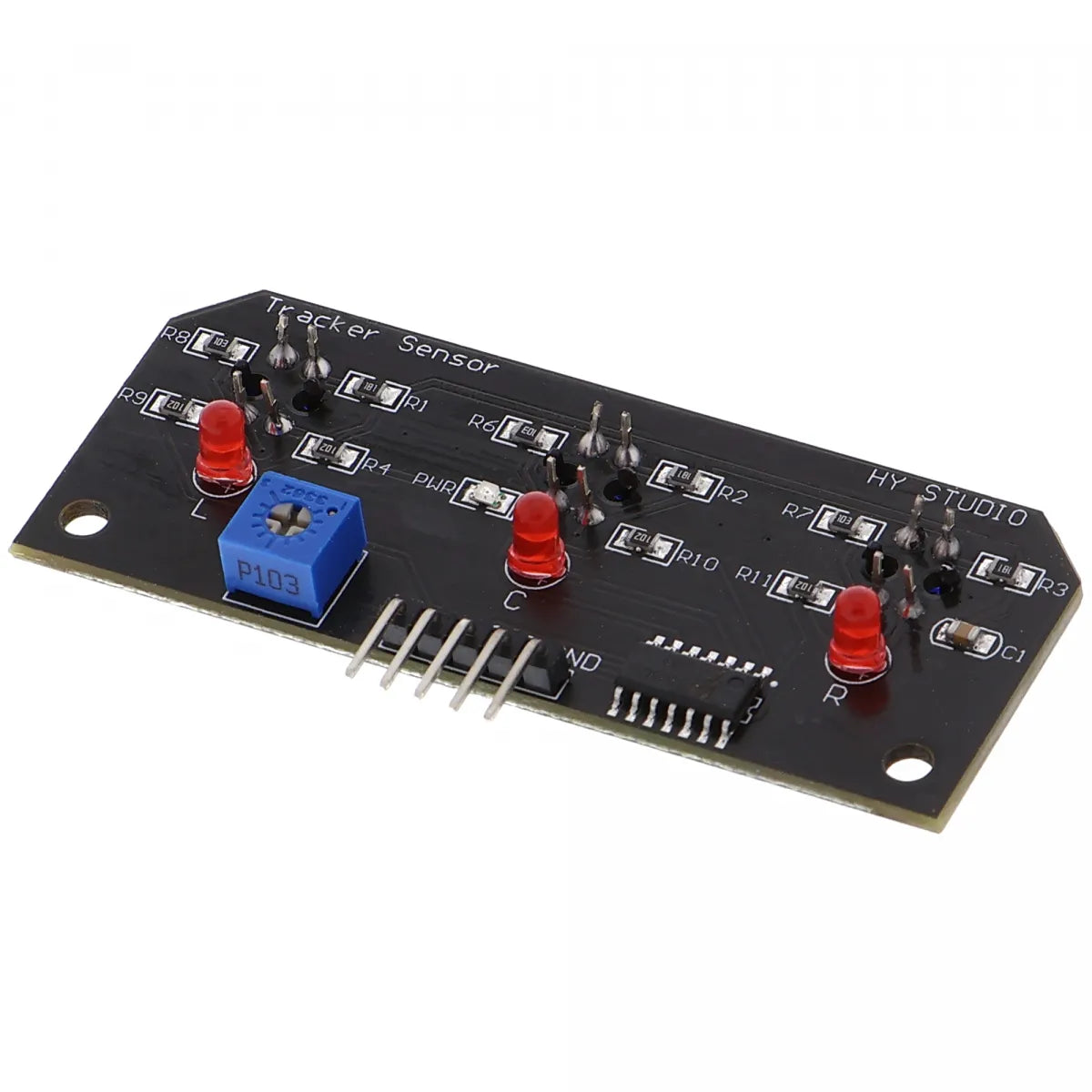

TCRT5000 Three Channel Infrared Line Follower Tracker

K-TECHNICS
In stock
KSh1,000.00

Secure checkout

Friendly support

Hassle-free returns

The TCRT5000 3-Channel Infrared Line Track Sensor Module is an integrated sensor array designed for autonomous robot navigation, surface contrast detection, and line-following applications. It mounts three independent TCRT5000 optical sensors onto a single board, allowing a microcontroller to simultaneously detect edges and execute tracking algorithms.
Key Specifications
  • Sensor Core: 3 x TCRT5000 Infrared Reflective Sensors
  • Operating Voltage: 3.3V to 5V DC
  • Detection Distance: 1 mm to 25 mm (Optimal: ~2.5 mm)
  • Output Type: Clean Digital Signals (High / Low levels)
  • Onboard IC: LM393 Voltage Comparator
  • Calibration: Potentiometers for independent sensitivity control
How It Works
Each channel features an IR emitting diode and a phototransistor:
  • Light Surfaces: IR light reflects into the phototransistor, pulling the output LOW.
  • Dark Surfaces: IR light is absorbed, leaving the phototransistor un-triggered, pulling the output HIGH.
  • Status LEDs: Onboard indicators light up to provide immediate visual feedback.
Module Pinout
  • VCC: Power supply input (3.3V - 5V)
  • GND: System ground
  • L: Left channel digital output
  • C: Center channel digital output
  • R: Right channel digital output
