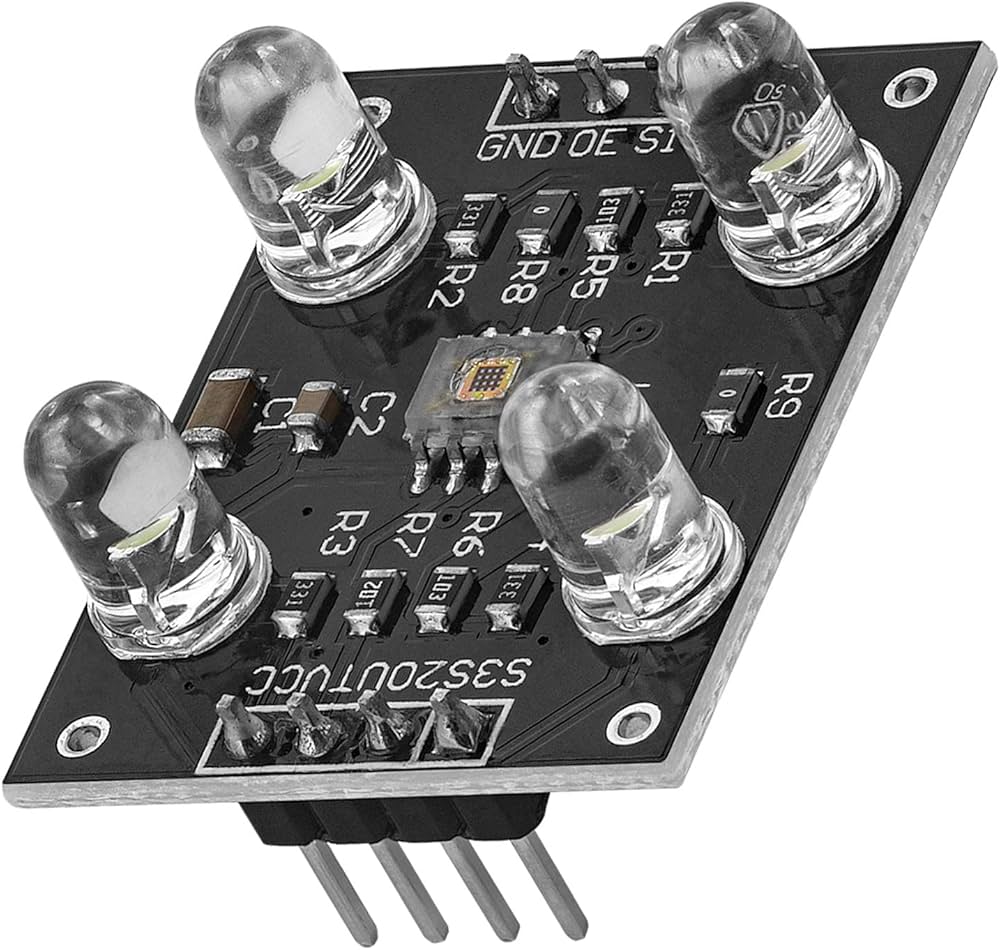

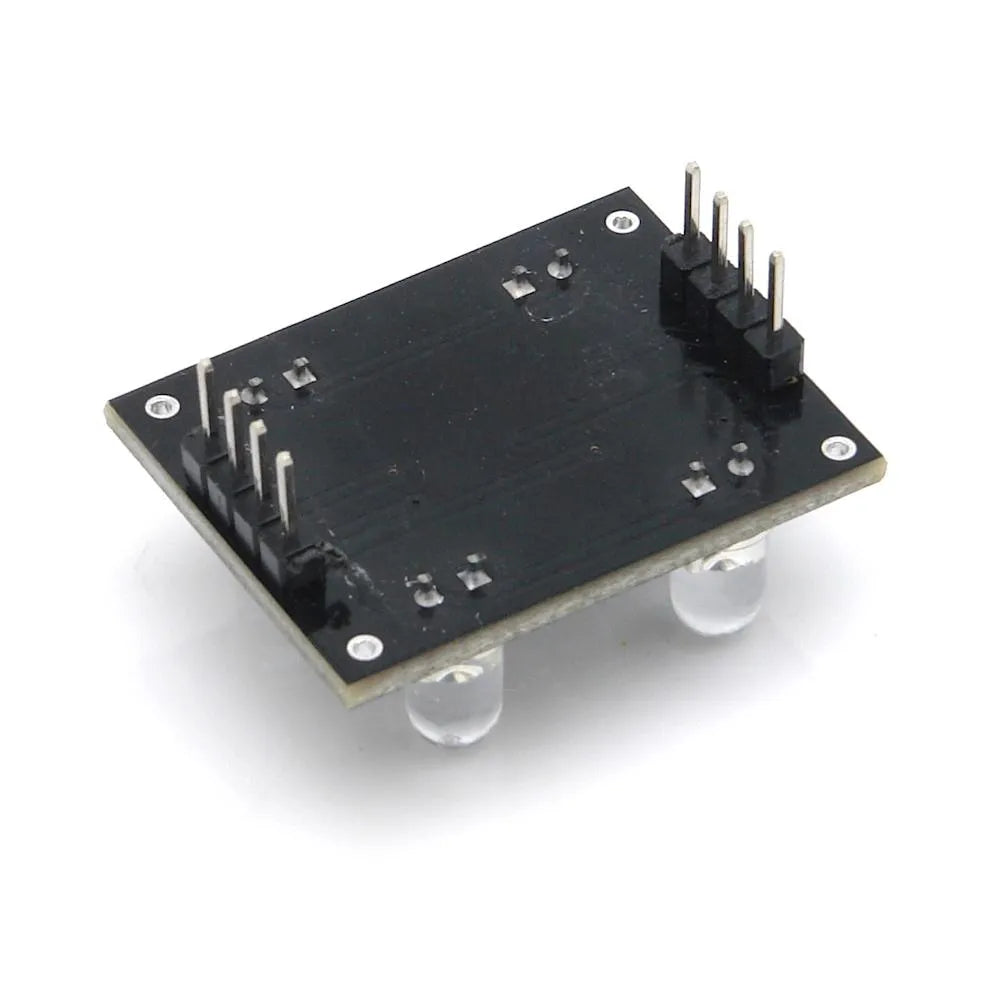

TCS230 Color Recognition Sensor

K-TECHNICS
Out of stock
KSh900.00

Secure checkout

Friendly support

Hassle-free returns

Features:

CATEGORY SPECIFICATIONS
Product Type Color Sensor Module
Sensor Chip TCS230 (TCS3200 upgraded version)
Working Principle Uses 64 photodiodes with color filters to convert light intensity into frequency
Photodiode Structure 64 total photodiodes (16 Red, 16 Green, 16 Blue, 16 Clear)
Filter System Red, Green, Blue, and Clear (no filter) selectable via control pins
Output Type Frequency output (square wave)
Frequency Range 2 Hz – 500 kHz
Scaling Factor Programmable: 100%, 20%, 2%, or power-off mode
Supply Voltage 3V – 5V
Control Pins Two programmable pins for filter and scaling selection
Light Interference Anti-ambient light interference design
Detection Capability Can detect color of non-luminous objects
LED Feature White LED with controllable on/off function
Design Advantage Staggered photodiode layout reduces non-uniform light error
Accuracy Feature Parallel photodiode grouping improves color detection accuracy
Package Type 8-pin SOIC surface mount
PCB Size 33 mm × 25 mm
Key Features Improved version of TCS3200, better stability and accuracy
Applications Color recognition, sorting systems, robotics, automation
