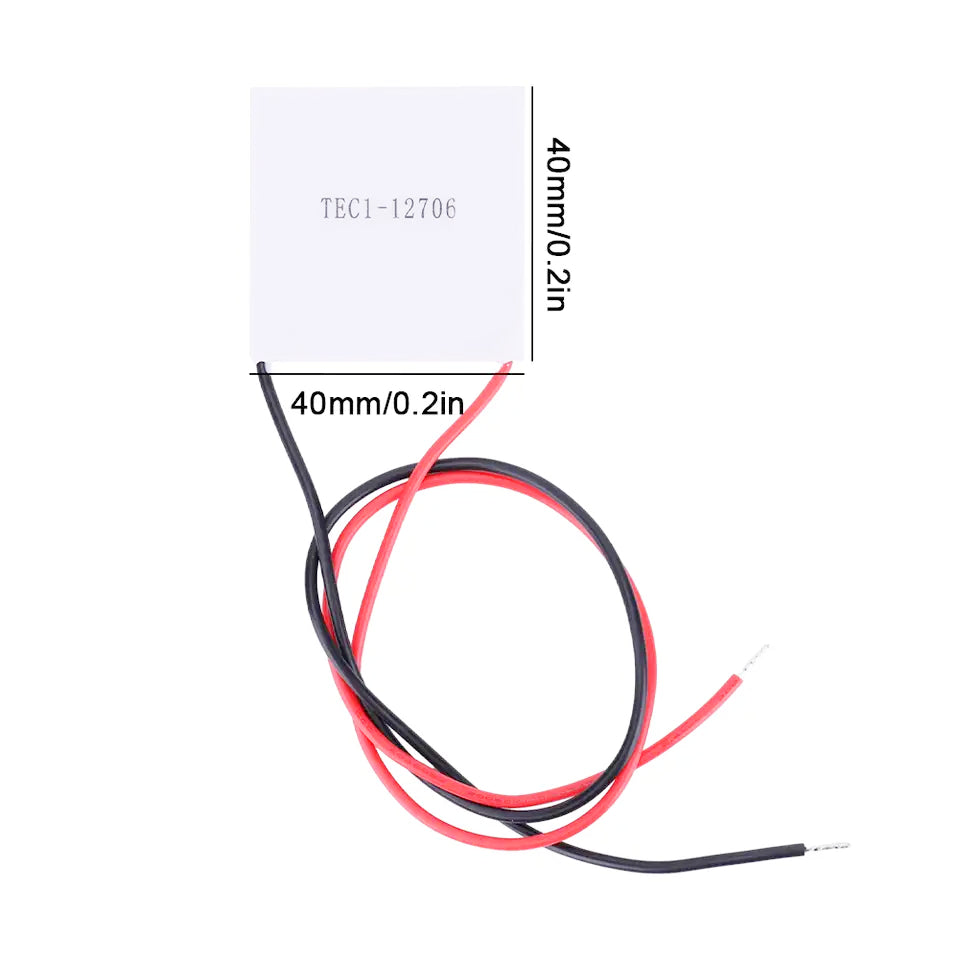

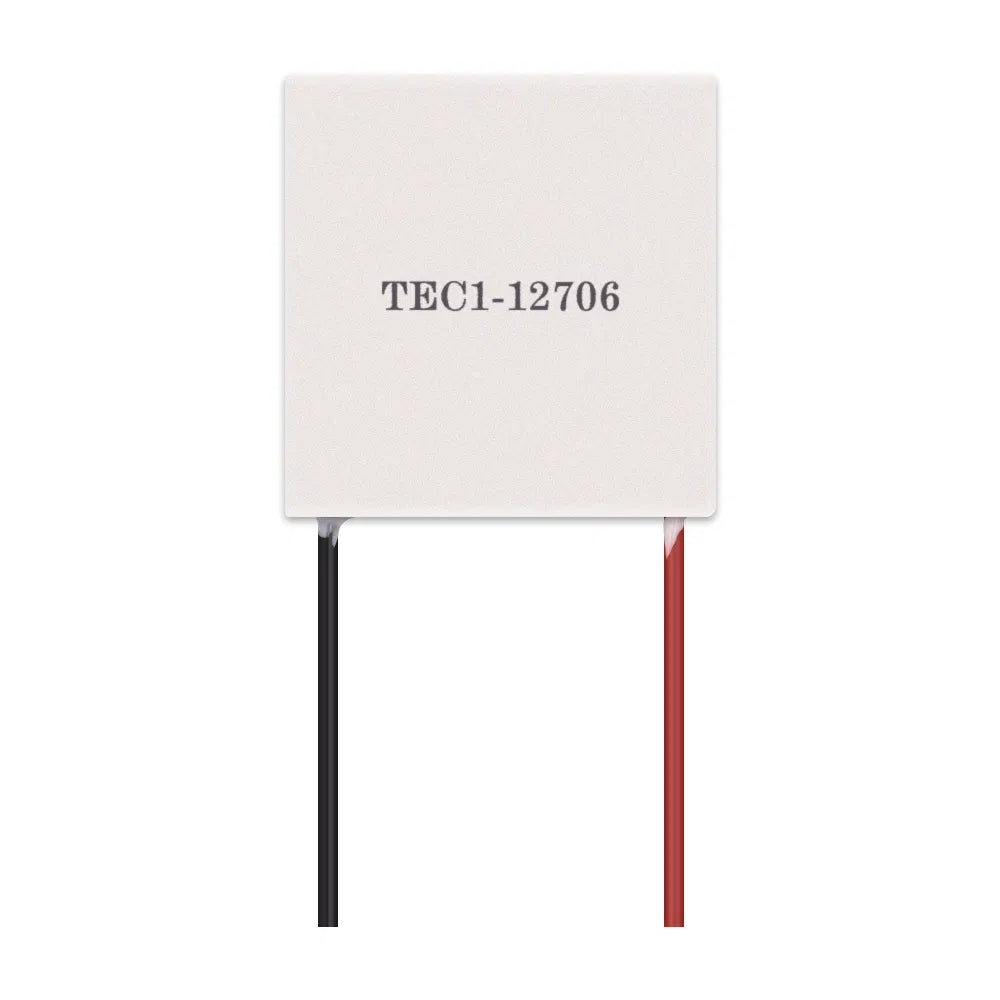

TEC1-12706 12706 TEC Thermoelectric Cooler Peltier
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns
- Voltage: 12V DC nominal (15.4V max)
- Current: 4.5A continuous (6A max)
- Power: ~60 Watts max
- Temperature Delta: Up to 67°C difference between sides
- Heatsink Required: The hot side must have a large heatsink and fan attached before turning it on. Without it, the module will burn out and destroy itself in under two seconds.
- Thermal Paste: Always apply thermal grease to both sides to ensure proper heat transfer.
- Wiring: Connect Red to positive (+) and Black to negative (-). The side with the printed text ("TEC1-12706") will become the cold side.
