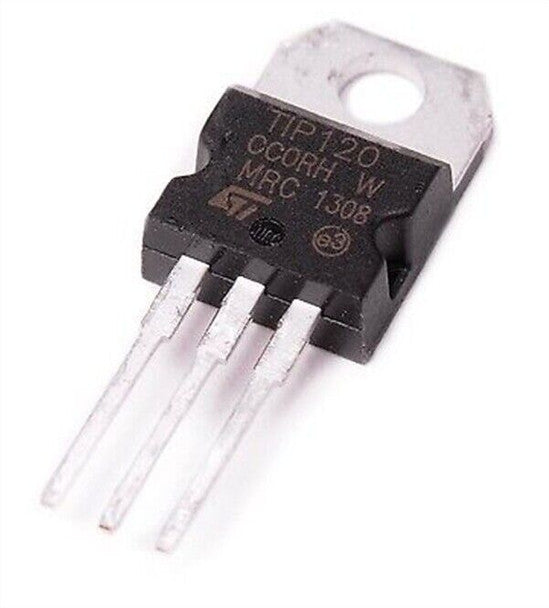

TIP120 NPN Darlington Power Transistor (5A, 60V, TO-220)

K-TECHNICS
In stock
KSh50.00

Secure checkout

Friendly support

Hassle-free returns

TIP120 Darlington Power Transistor, a high-gain NPN switching device designed for reliable control of medium to high-current loads.

⚙️ Technical Specifications

  • Type: NPN Darlington Power Transistor
  • Collector-Emitter Voltage (VCEO): 60V
  • Collector Current (IC): 5A
  • Power Dissipation: up to 65W (with proper heatsink)
  • Package: TO-220 (3-pin + tab)

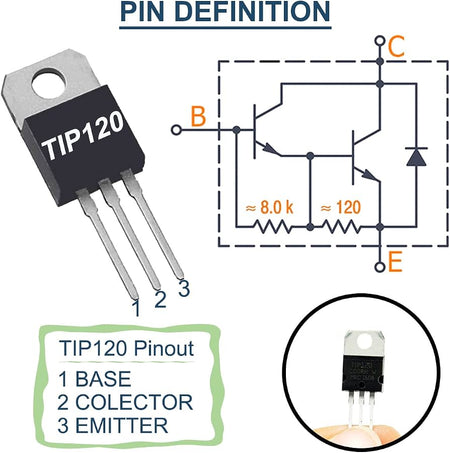

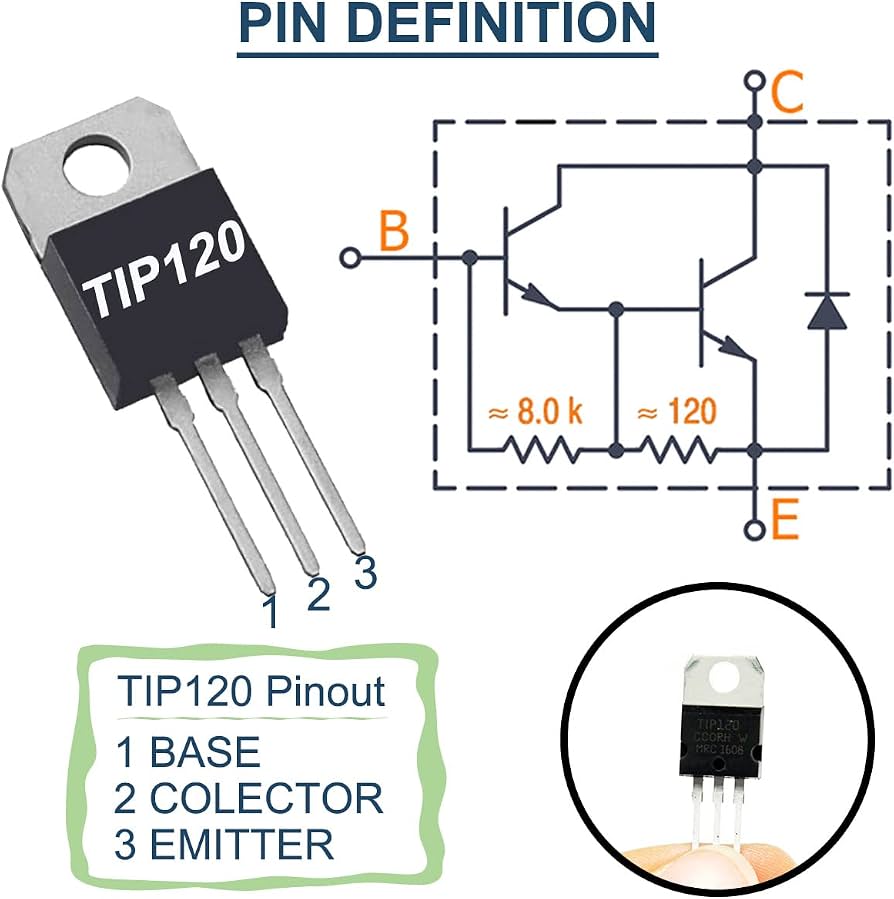

  • Pinout: 1 – Base, 2 – Collector, 3 – Emitter
