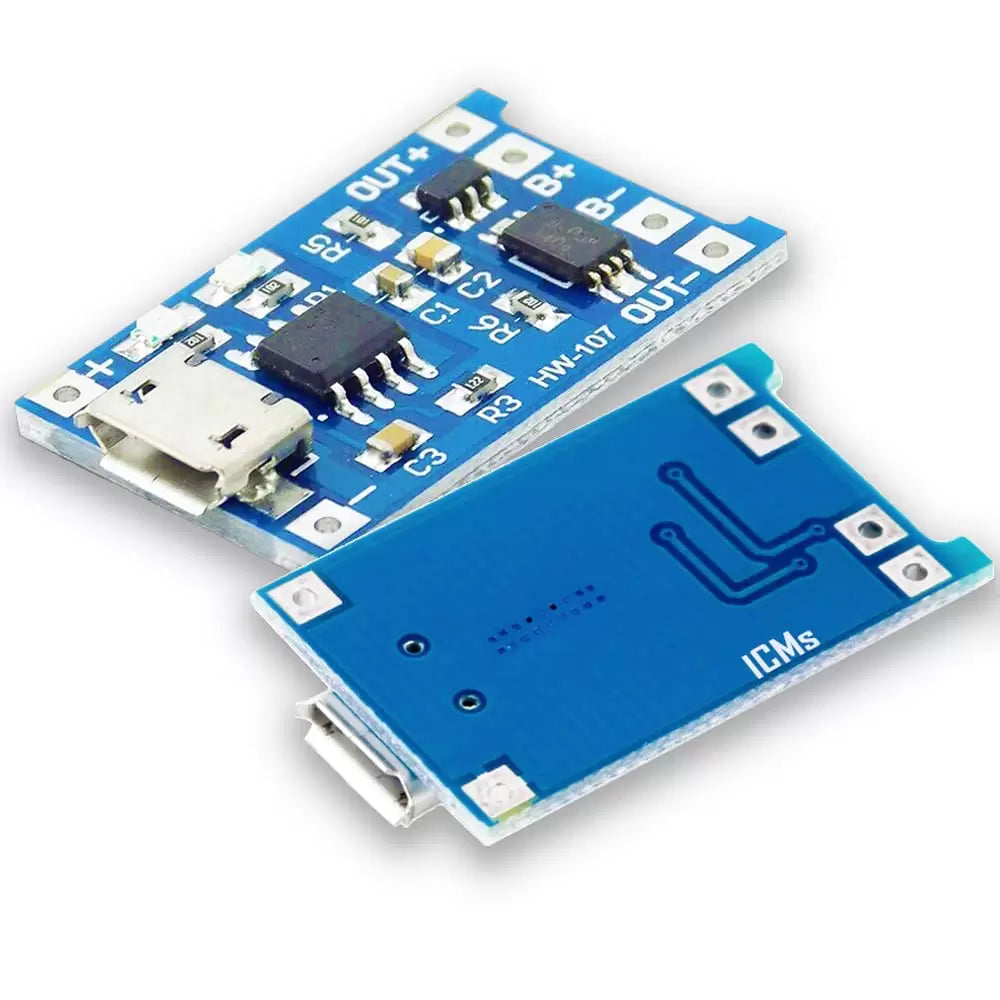

TP4056 1A Li-Ion Battery Charger Module with Protection (Micro USB)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

The TP4056 1A Battery Charger Module is the perfect solution for safely charging single-cell 3.7V/4.2V lithium-ion or lithium-polymer batteries. Featuring a convenient Micro USB input, this module allows you to easily charge your batteries using a standard wall adapter, power bank, or computer USB port. It also includes direct solder pads for custom 5V wiring.

What makes this specific module essential is the onboard battery protection circuit. Working with bare lithium batteries requires care, and this board includes integrated safeguards to prevent overcharging, over-discharging, and short circuits. It automatically cuts off power if the battery voltage drops too low or climbs too high, ensuring your batteries remain safe and their lifespan is maximized.

Perfect For:

  • DIY Electronics: Add reliable, rechargeable power to custom builds, breadboard prototypes, and student projects.

  • Device Repair: Replace broken or proprietary charging circuits in portable electronics, toys, and flashlights.

  • Custom Power Packs: Build and safely charge standalone single-cell battery banks using common 18650 or LiPo cells.

Technical Specifications:

  • Charging IC: TP4056

  • Input Voltage: 4.5V to 5.5V DC

  • Full Charge Voltage: 4.2V

  • Max Charging Current: 1A (Adjustable via onboard resistor)

  • Under-Voltage Protection: 2.5V (Prevents over-discharging)

  • Overcurrent Protection: 3A

  • Input Interface: Micro USB or direct wiring pads

  • LED Indicators: Red (Charging in progress), Blue/Green (Fully charged)
