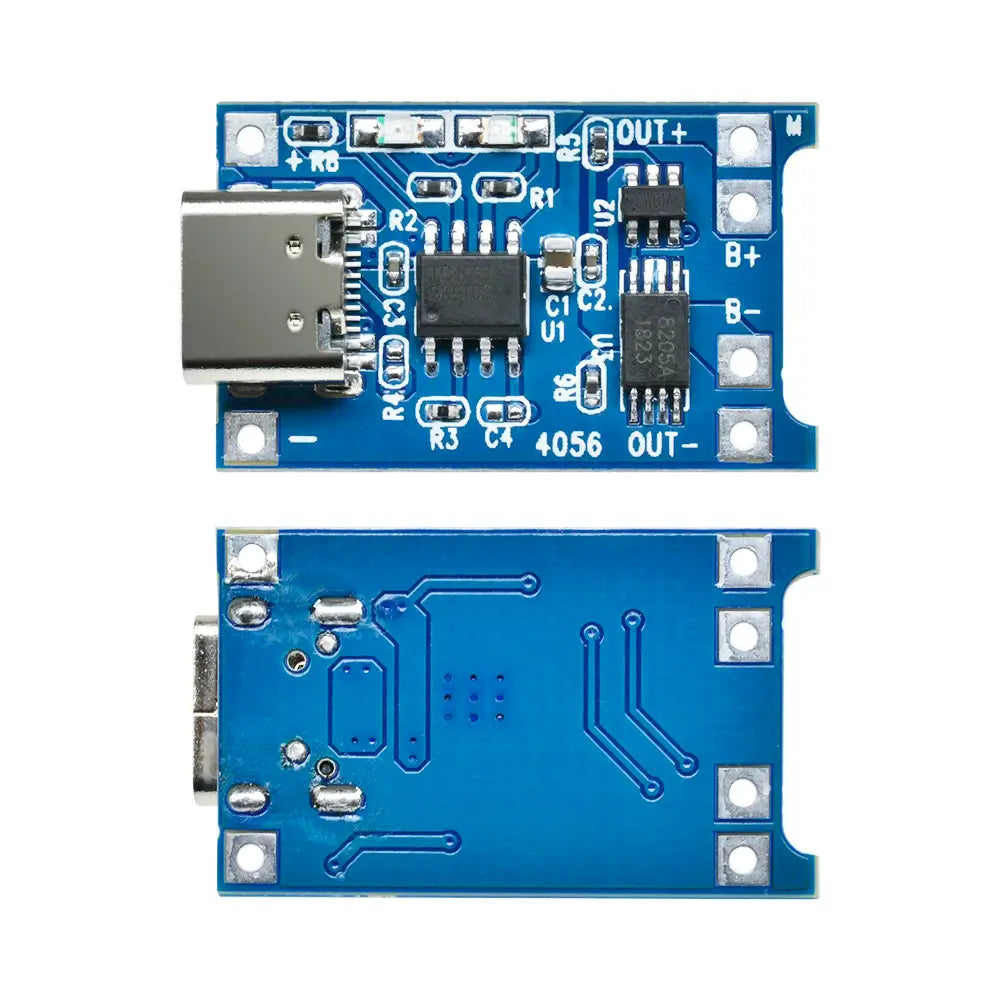

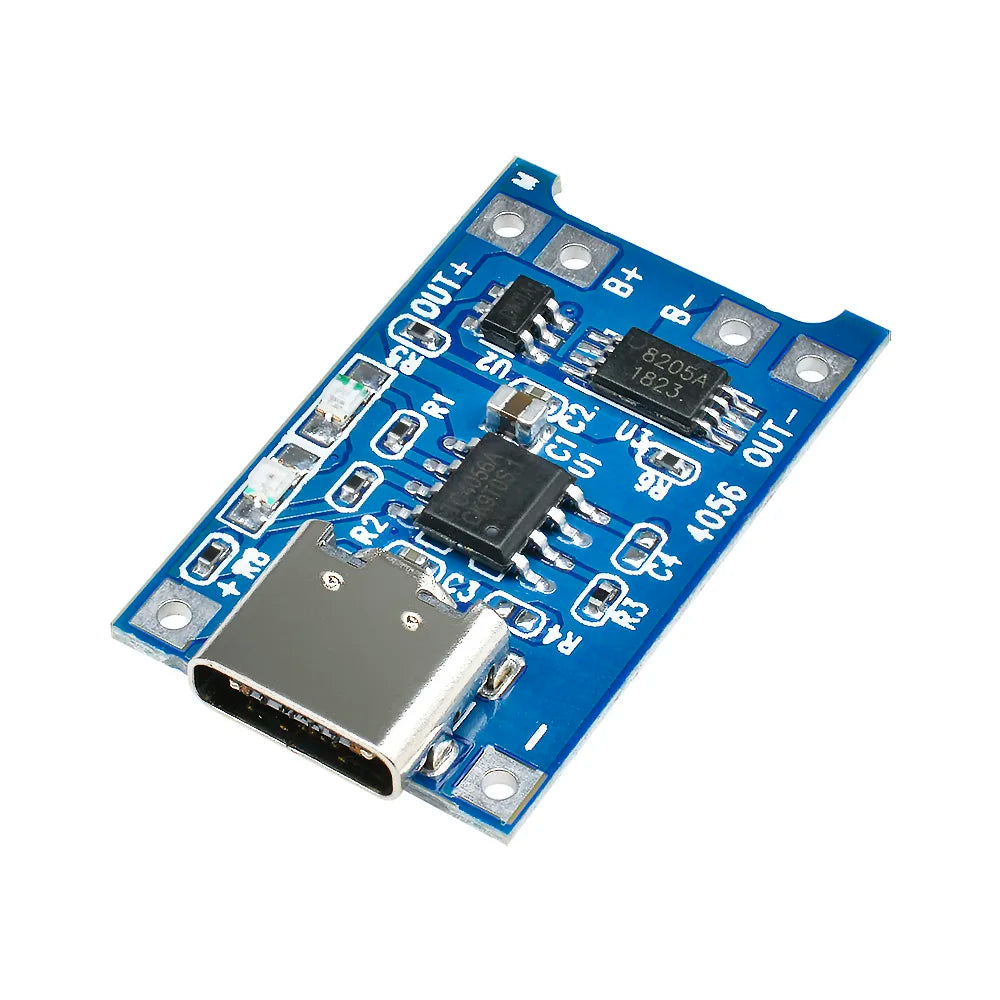

TP4056 1A Lithium Battery Charger Type-C with Protection

K-TECHNICS
In stock
KSh130.00

Secure checkout

Friendly support

Hassle-free returns

Specifications

  • Charging IC: TP4056
  • Input Connector: USB Type-C
  • Input Voltage: 5V DC
  • Battery Type: 3.7V Single-Cell Lithium-Ion/Lithium-Polymer
  • Full Charge Voltage: 4.2V ±1%
  • Default Charging Current: 1A
  • Charging Method: Constant Current / Constant Voltage (CC/CV)
  • Charge Termination Current: 100mA (Typical)
  • Protection IC: DW01A
  • Protection MOSFET: FS8205A (or equivalent dual MOSFET)
  • Protection Functions:
    • Overcharge protection
    • Over-discharge protection
    • Overcurrent protection
    • Short-circuit protection
  • Charging Status Indicator:
    • Red LED: Charging
    • Blue (or Green) LED: Fully charged
  • Operating Temperature: -10°C to +85°C
  • PCB Dimensions: Approximately 26 × 17 × 4 mm

Pinout

  • IN+ / IN- – 5V power input (connected to the USB Type-C input)
  • B+ / B- – Battery terminals
  • OUT+ / OUT- – Protected output for powering your circuit
