TTP224 4-way Keypad Capacitive Touch Switch

K-TECHNICS
In stock
KSh200.00

Secure checkout

Friendly support

Hassle-free returns

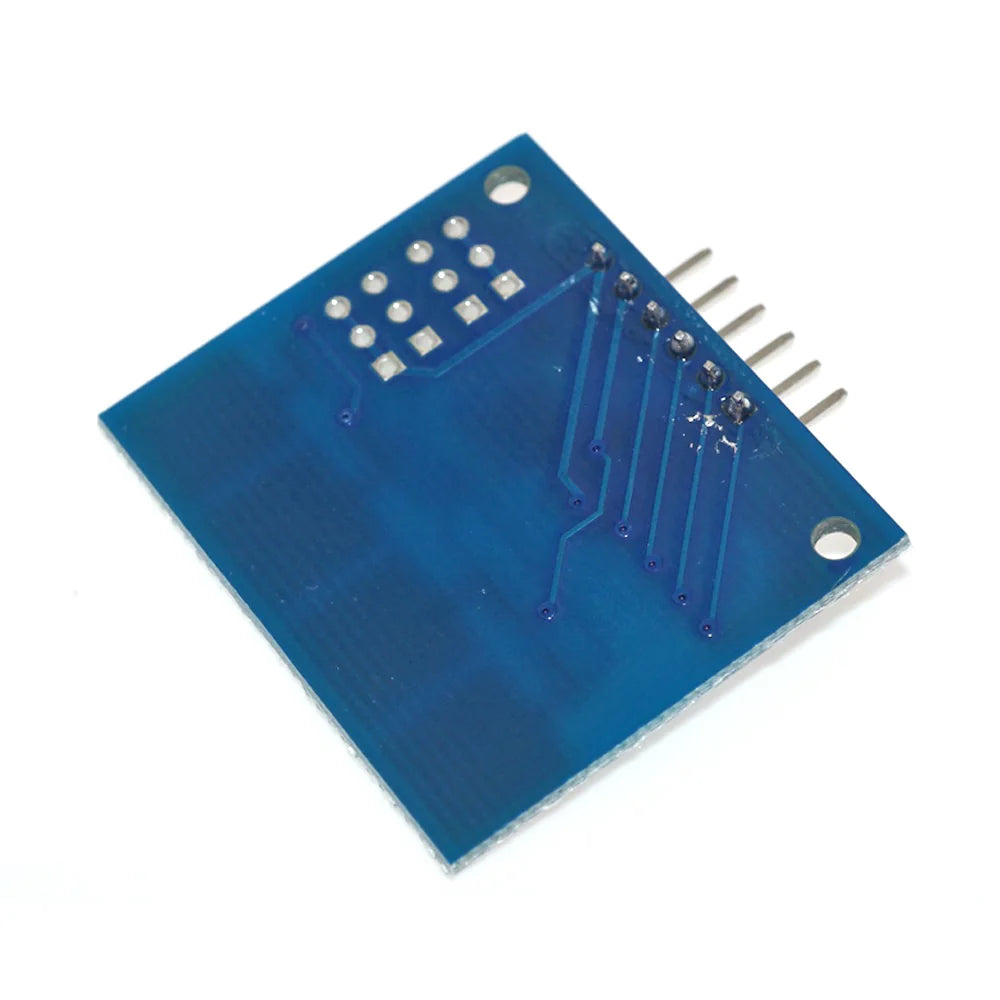

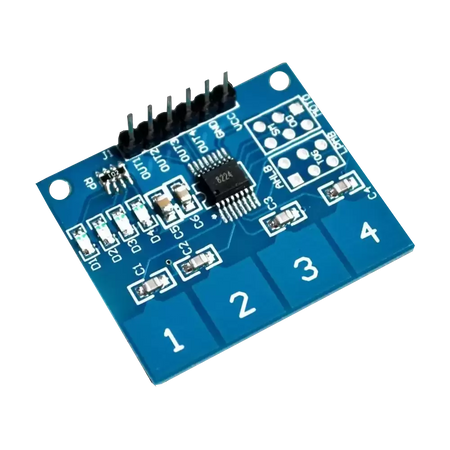

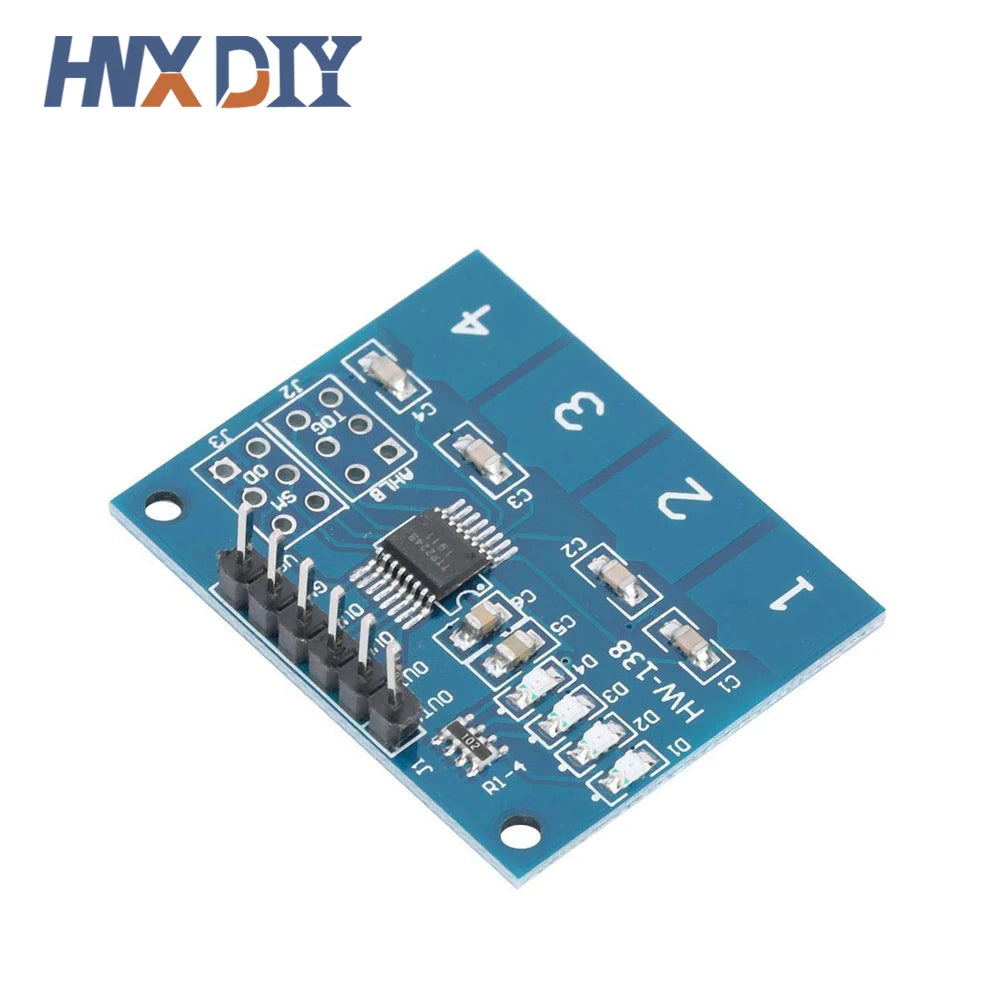

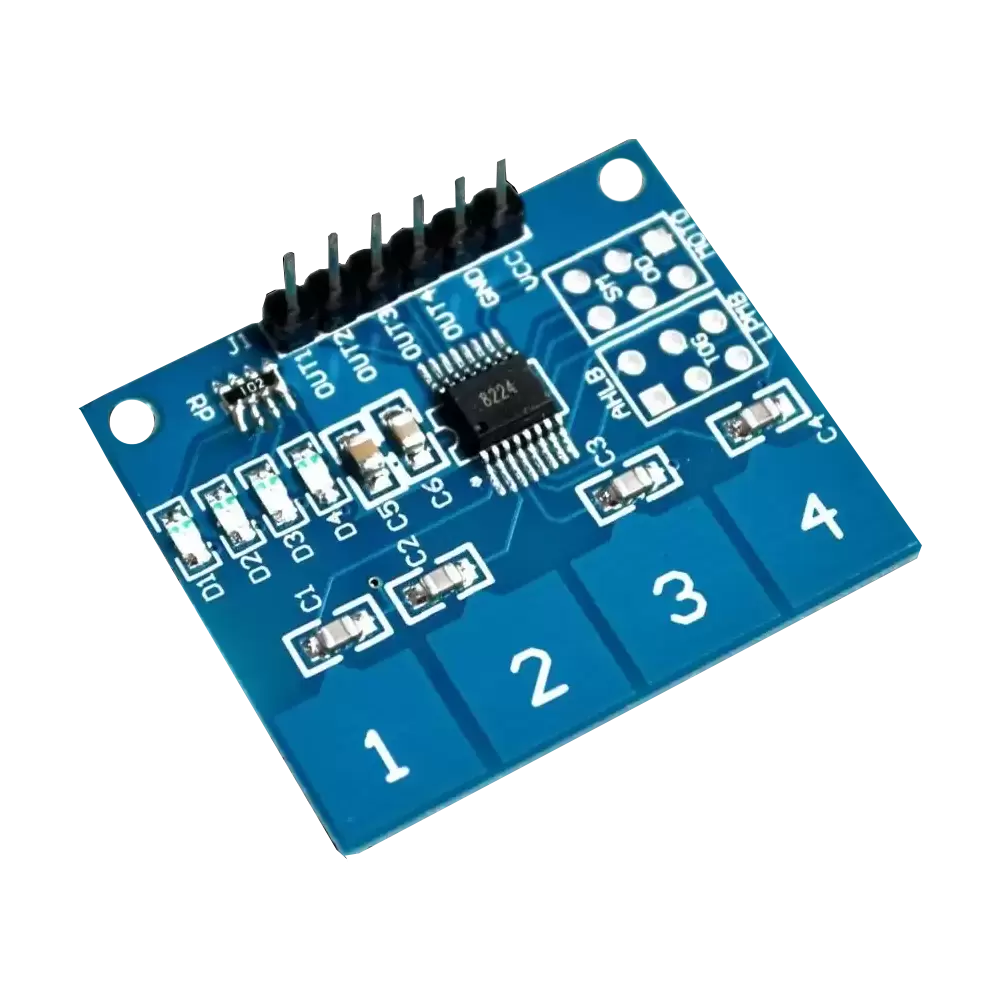

The TTP224 4-Way Capacitive Touch Module replaces four traditional mechanical buttons with touch-sensitive pads. It operates on 2.0V to 5.5V DC and outputs a digital signal whenever a finger alters the electrical capacitance of a pad. The board calibrates automatically upon power-up and features onboard status LEDs for each channel.
Pinout
  • VCC: Power input (2.0V – 5.5V)
  • GND: Ground
  • OUT1 – OUT4: Digital outputs for pads 1 to 4
Features & Modes
  • Adjustable Logic: Configurable via onboard jumper pads for Toggle (on/off) or Momentary (temporary) actions.
  • Output State: Can be set to Active High or Active Low signaling.
  • Material Penetration: Senses touch through glass, plastic, wood, and acrylic.
