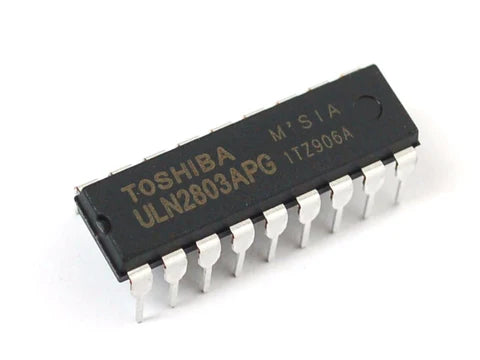

ULN2803APG (8-Channel Darlington Transistor Array - 18-Pin DIP Package)

A standard Arduino Uno or ESP32 GPIO pin can safely output roughly 20 to 40 milliamps of current. If you attempt to connect a mechanical relay, a solenoid valve, or a stepper motor directly to your microcontroller, you will instantly destroy the pin. The ULN2803 is the industry-standard silicon "muscle" that solves this problem. It is an array of eight independent NPN Darlington transistor pairs. You send a weak, safe 5V logic signal from your microcontroller into one side of the chip, and the corresponding transistor on the other side acts as a heavy-duty switch, capable of handling up to 500mA and 50V.

What makes the ULN2803 an absolute staple on the workbench is its convenience. If you were to build this circuit manually, you would need 8 transistors, 8 base resistors, and 8 flyback diodes—cluttering your breadboard with 24 separate components. The ULN2803 packages all of this into a single 18-pin chip. It includes built-in base resistors perfectly tuned for 5V logic, and integrated flyback (freewheeling) diodes on every channel to safely absorb the destructive voltage spikes generated when turning off inductive loads like motors and relays. Because it has exactly 8 channels, it is the legendary companion chip to the 74HC595 shift register, allowing you to build massive, digitally controlled power stations.

Key Features & Functional Advantages:

• 8 Independent High-Power Channels: Perfectly mapped for 8-bit digital logic, allowing you to control a full byte's worth of heavy loads from a single IC.

• Massive Load Capacity: Each individual channel can switch up to 50V and sink up to 500mA. (Note: For thermal safety, if turning all 8 channels on simultaneously, the current per channel should be kept much lower).

• Built-in Inductive Protection: Features integrated clamping diodes tied to a common "COM" pin. This safely routes high-voltage kickback from spinning motors and clicking relays away from your sensitive logic.

• Integrated Base Resistors: The "2803" specifically features 2.7kΩ input resistors, meaning you can wire the input pins directly to standard 5V TTL logic (like an Arduino) without adding any external resistors.

• Breadboard Native (18-DIP): Sized perfectly to straddle the center gap of a standard solderless breadboard for rapid, tidy prototyping.

Perfect For:

• Relay Expansion Modules: The absolute standard silicon used to drive banks of 4, 8, or 16 mechanical relays from a single microcontroller.

• Unipolar Stepper Motors: Excellent for driving classic 5-wire or 6-wire unipolar steppers (like the ubiquitous 28BYJ-48 motor).

• Solenoid & Valve Control: Easily handles the heavy current spikes required to snap open automated water valves or pneumatic solenoids in smart agriculture projects.

• High-Power LED Arrays: A highly reliable way to PWM-dim long strips of 12V or 24V single-color LEDs without overloading your Arduino.

Technical Specifications:

• Transistor Type: NPN Darlington Array

• Number of Channels: 8

• Maximum Output Voltage: 50V DC

• Maximum Output Current: 500mA per channel (Sink)

• Input Logic Compatibility: 5V TTL/CMOS (Contains internal 2.7kΩ resistors)

• Integrated Protection: Built-in Flyback Diodes

• Package / Case: 18-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
