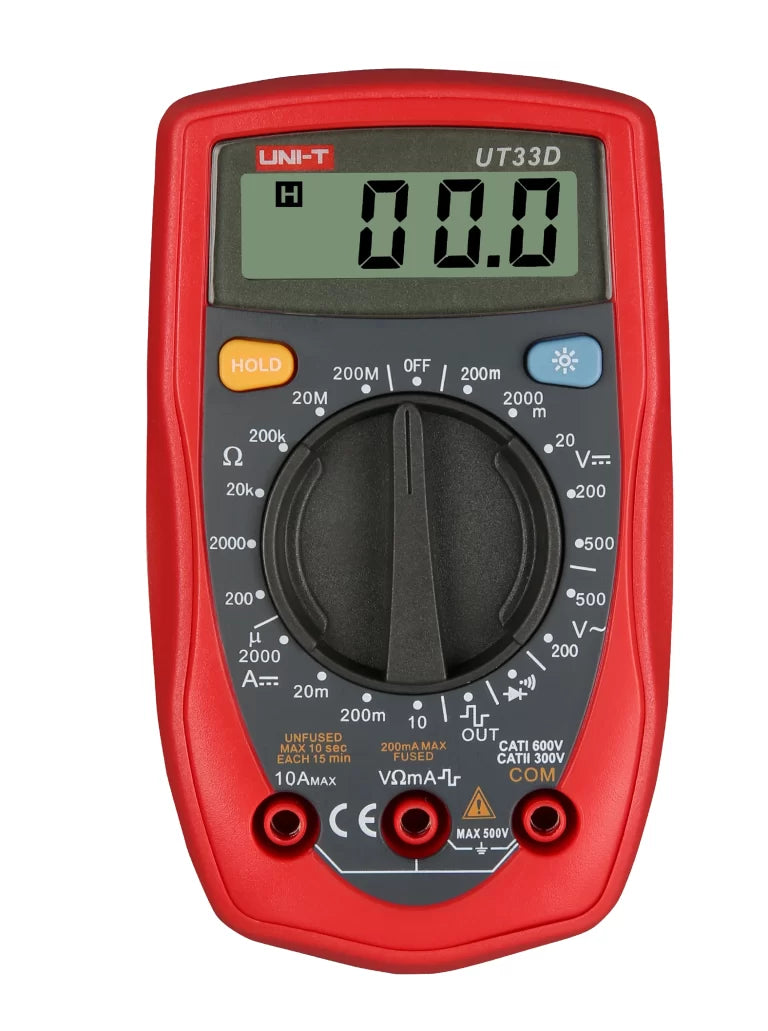

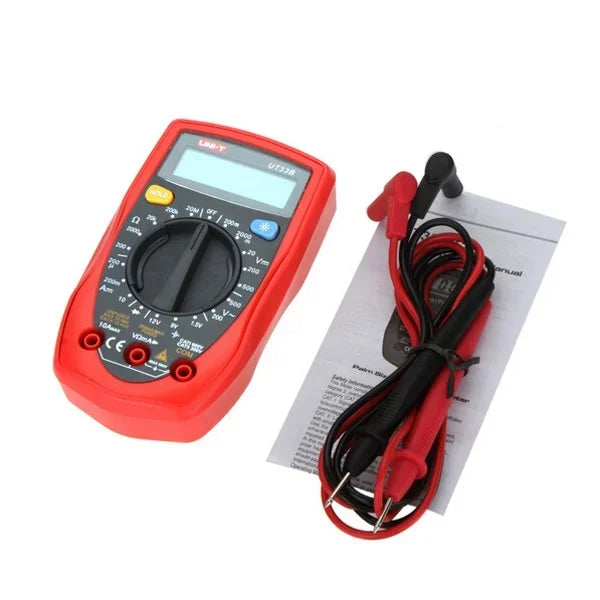

UNI-T UT33D Digital Multimeter with NCV (Palm-Sized, 2000 Counts)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

The standout feature of the "D" variant in this series is the integrated Non-Contact Voltage (NCV) detector. This allows you to safely identify live AC wires hidden behind walls or inside cable conduits simply by holding the top of the meter near the wire, without ever exposing your test probes to bare copper. Alongside this, it effortlessly measures DC and AC voltage up to 600 Volts, DC current up to 10 Amps, and resistance up to a massive 200 Megaohms. Supported by a crisp, backlit LCD display and clever built-in test lead holders on the back, it is a meticulous and highly refined diagnostic tool.

Key Features & Functional Advantages

  • Non-Contact Voltage (NCV): Safely detect live alternating current without physical contact; the meter will visibly and audibly alert you to the presence of high-voltage AC fields.

  • Exceptional Durability: Encased in a rugged, vibrant red protective holster that not only provides excellent grip but is factory-certified to withstand a 2-meter drop.

  • Integrated Lead Storage: The rear of the protective case features custom-molded slots, allowing you to neatly snap your test probes into place when not in use to prevent tangled wires in your tool bag.

  • Clear, Illuminated Display: The 2000-count LCD screen features a bright, dedicated backlight, making it incredibly easy to read your measurements inside dark server cabinets or dimly lit rooms.

  • Smart Power Management: Automatically powers down after 15 minutes of inactivity to save battery life, running on standard AAA batteries rather than the less common 9V blocks.

Perfect For

  • Hardware Engineering: The ideal, trustworthy companion for safely verifying mains voltage on custom AC/DC energy meter prototypes before bringing them fully online.

  • Embedded Development: Quickly testing trace continuity, verifying resistor values, and checking logic levels on ESP32 or STM32 development boards.

  • Household Electrical Safety: Allowing homeowners and DIYers to safely verify that wall outlets or light switches are completely dead using the NCV function before starting repairs.

  • Field Service Kits: A rugged, lightweight, and highly dependable primary meter for technicians who need a professional-grade tool that won't take up much space in their bag.

Technical Specifications

  • Device Type: Manual-Ranging Digital Multimeter with NCV

  • Display: 2000 Counts LCD with Backlight

  • DC Voltage Range: 200.0mV to 600V

  • AC Voltage Range: 200.0V to 600V

  • DC Current Range: 200.0μA to 10.00A (No AC Current Measurement)

  • Resistance Range: 200.0Ω to 200.0MΩ

  • Safety Rating: CAT II 600V

  • Extra Functions: NCV (Non-Contact Voltage), Data Hold, Diode Test, Continuity Buzzer

  • Power Source: 2 x 1.5V AAA Batteries

  • Dimensions: 134mm x 77mm x 47mm
