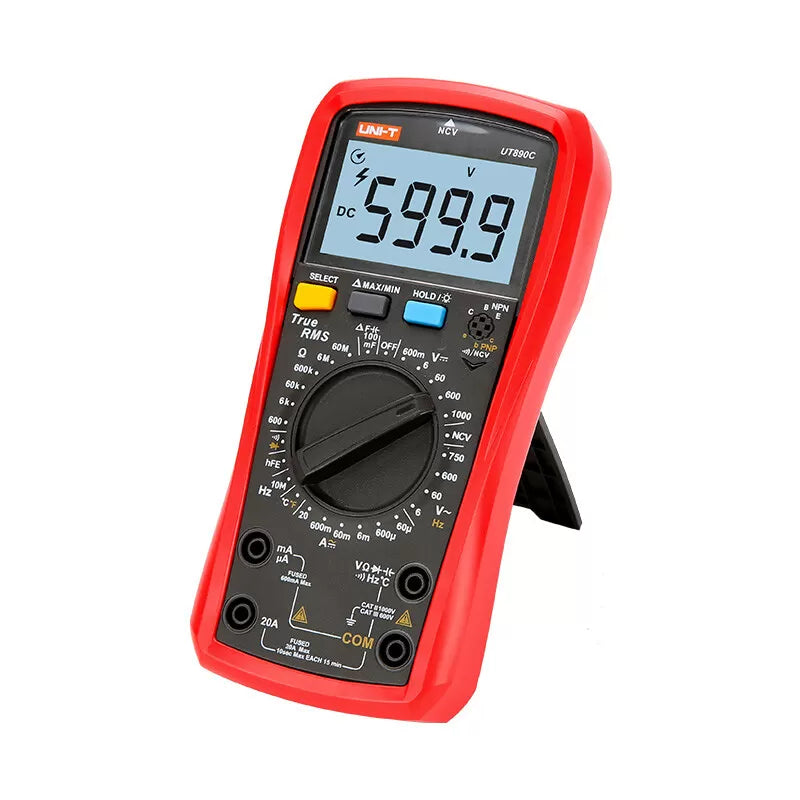

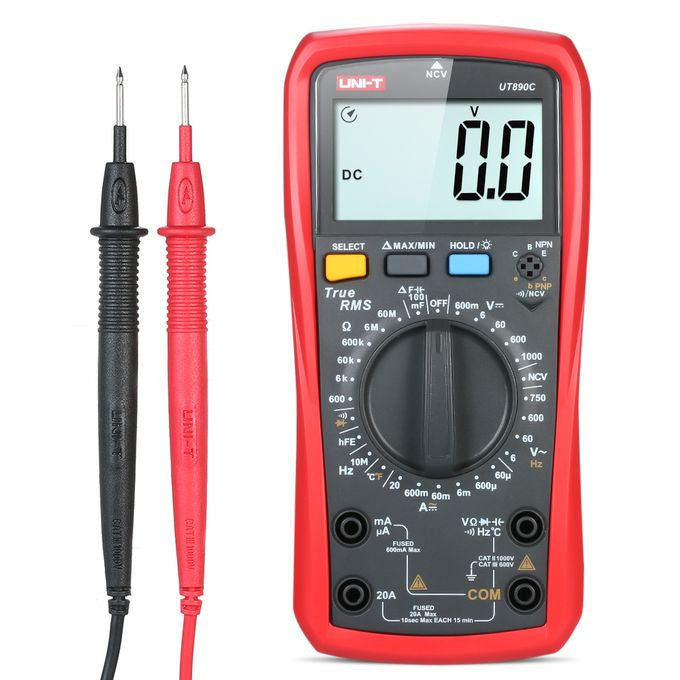

UNI-T UT890C True RMS Digital Multimeter (6000 Counts with Temperature)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

What specifically distinguishes the "C" variant of the UT890 series is its inclusion of a dedicated K-type thermocouple for high-range temperature measurement. This makes it an invaluable tool for testing the thermal performance of heat sinks, checking 3D printer extruders, or diagnosing air conditioning units. Furthermore, it boasts an absolutely massive capacitance testing range (up to 100mF), allowing you to test large power supply capacitors that lesser meters simply cannot read. Housed in UNI-T's signature rugged, drop-resistant over-molding and featuring a highly unique "blown fuse" audible alarm, it is designed to keep both the meter and the operator completely safe during intense electrical work.

Key Features & Functional Advantages

  • True RMS Measurement: Delivers highly accurate AC voltage and current readings on complex, non-sinusoidal electrical waveforms where standard meters would calculate the wrong values.

  • Integrated Temperature Testing: Comes with a K-type thermocouple probe, allowing you to directly measure extreme physical temperatures from -40°C all the way up to 1000°C.

  • Massive Capacitance Range: Capable of measuring up to 100mF (100,000μF), making it incredibly useful for repairing audio amplifiers and heavy-duty motor start capacitors.

  • Intelligent Fuse Alarm: Features a built-in safety warning system that audibly and visually alerts you if the internal protection fuses have blown, preventing you from chasing false diagnostic readings.

  • High Current Capacity: Designed to safely handle up to 20 Amps of continuous current, significantly outperforming the standard 10-Amp limit found on most handheld meters.

Perfect For

  • HVAC & Refrigeration Technicians: The absolute best choice for diagnosing air conditioning units, testing thermostat relays, and measuring refrigerant line temperatures.

  • Advanced Electronics Repair: The massive capacitance range and True RMS capabilities make it perfect for fixing modern flat-screen televisions and switching power supplies.

  • Industrial Maintenance: Safely verifying high-voltage mains and accurately testing variable-frequency drives on the factory floor.

  • Hardware Engineering: Testing the thermal output of custom PCBs and heavily loaded MOSFETs under load using the included thermocouple.

Technical Specifications

  • Device Type: True RMS Manual-Ranging Digital Multimeter

  • Display: 6000 Counts LCD with Backlight

  • DC Voltage Range: 600.0mV to 1000V

  • AC Voltage Range: 6.000V to 750V (True RMS)

  • DC/AC Current Range: 60.00μA to 20.00A

  • Resistance Range: 600.0Ω to 60.00MΩ

  • Capacitance Range: 6.000nF to 100.0mF

  • Frequency Range: 9.999Hz to 9.999MHz

  • Temperature Range: -40°C to 1000°C (-40°F to 1832°F)

  • Extra Functions: Blown Fuse Alarm, Transistor hFE, Diode Test, Continuity Buzzer, Data Hold

  • Power Source: 2 x 1.5V AAA Batteries

  • Safety Rating: CAT II 1000V / CAT III 600V
