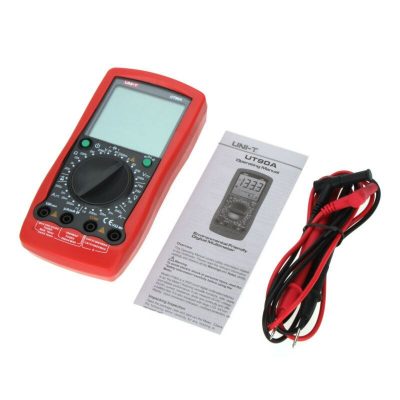

UNI-T UT90A Digital Multimeter (3.1″ Large LCD, 1999 Counts)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

Beyond its lovely, large display, the UT90A is a remarkably capable diagnostic instrument. It features classic manual-ranging dials that give you tactile, instant control over your testing parameters. It safely measures DC voltage up to 1000 Volts, AC voltage up to 750 Volts, resistance, and notably, it measures both AC and DC current up to 10 Amps. It also features a highly convenient dedicated Battery Test mode, applying an internal load to 1.5V and 9V batteries to tell you if they are truly dead or just resting.

Key Features & Functional Advantages

  • Massive 3.1-Inch Display: Features an oversized, crystal-clear 1999-count LCD screen, ensuring you can easily read your voltage and current measurements at a glance.

  • Dedicated Battery Tester: Safely applies a real physical load to 1.5V and 9V batteries, giving you a true, accurate assessment of whether a household battery has enough juice to run your devices.

  • Comprehensive Current Testing: Unlike many entry-level meters, it measures both DC and AC current up to 10 Amps, and the 10A circuit is internally fused for a wonderful extra layer of safety.

  • Rugged Protection: Encased in a thick, removable red silicone holster that provides excellent grip and completely protects the internal circuitry from accidental workbench drops.

  • Data Hold Function: A convenient "HOLD" button freezes the current reading on the screen, allowing you to safely remove your test probes from tight spots before logging the measurement.

Perfect For

  • Household DIY & Repairs: The absolute perfect, easy-to-read tool for checking dead batteries, testing wall outlets, and verifying appliance fuses.

  • Educational Environments: A fantastic, rugged first multimeter for students, featuring an oversized display that is incredibly easy for instructors to verify from a distance.

  • Automotive Maintenance: Quickly checking 12-Volt car batteries, testing alternator outputs, and tracing electrical shorts in automotive wiring harnesses.

  • Hobbyist Electronics: Measuring precise logic voltages, verifying resistor values, and checking trace continuity on custom printed circuit boards.

Technical Specifications

  • Device Type: Manual-Ranging Digital Multimeter

  • Display: 3.1-Inch LCD (1999 Counts)

  • DC Voltage Range: 200mV to 1000V

  • AC Voltage Range: 2V to 750V

  • DC Current Range: 200mA to 10A

  • AC Current Range: 200mA to 10A

  • Resistance Range: 200Ω to 20MΩ

  • Battery Test Function: 1.5V and 9V (Under Load)

  • Extra Functions: Data Hold, Diode Test, Continuity Buzzer, Low Battery Indicator

  • Power Source: 1 x 9V Battery (6F22)

  • Dimensions: 179mm x 88mm x 39mm
