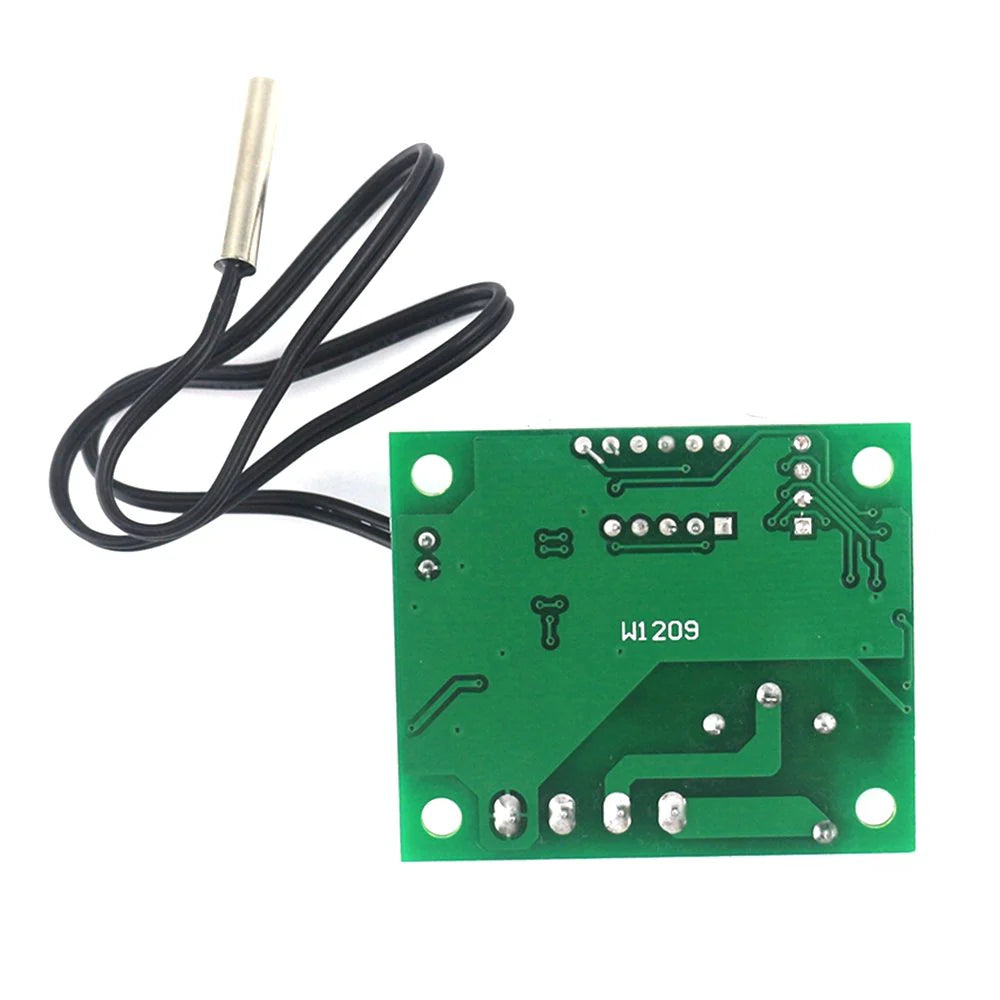

W1209 Digital Thermostat

K-TECHNICS
Only 3 left
KSh450.00

Secure checkout

Friendly support

Hassle-free returns

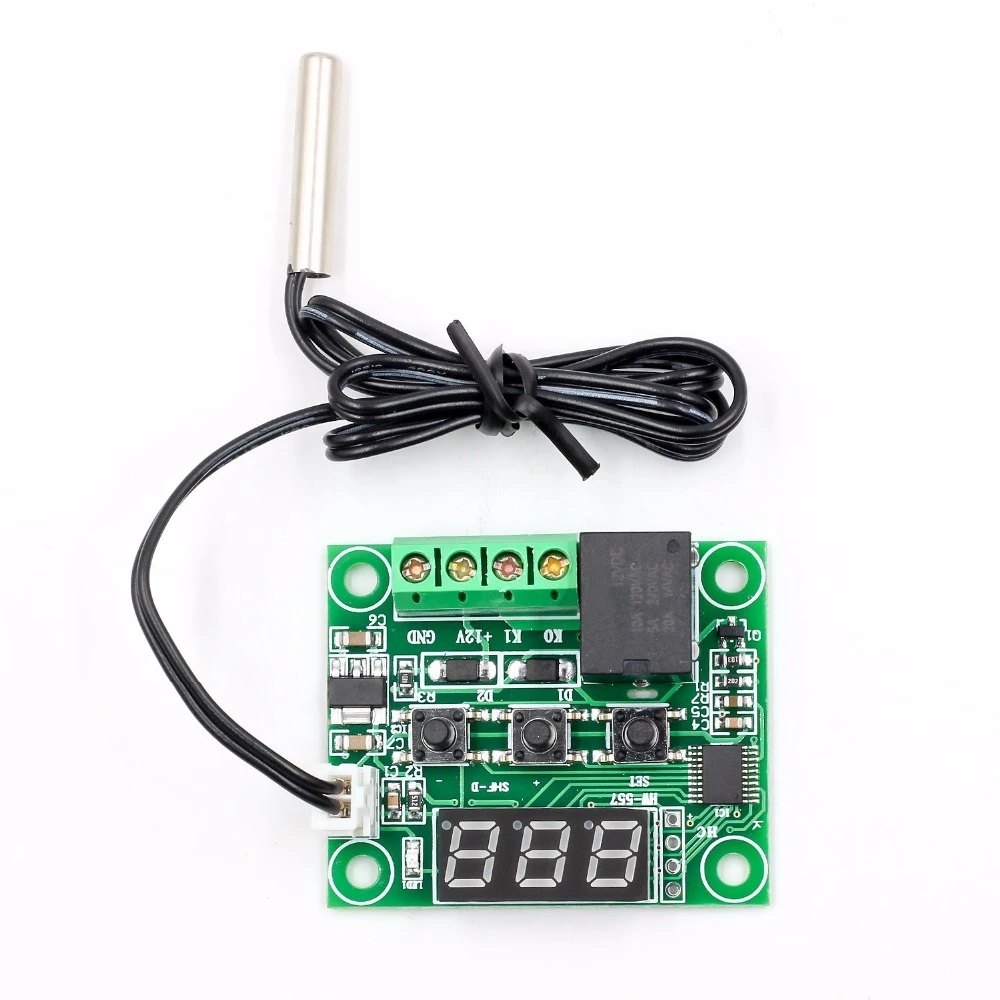

The W1209 Digital Thermostat is a compact, highly functional, and low-cost electronic module used to automatically regulate temperature in appliances like egg incubators, aquariums, and DIY cooling or heating systems.
Technical Specifications
  • Operating Voltage: 12V DC (5V and 24V variants also exist)
  • Temperature Range: -50°C to 110°C
  • Control Resolution: 0.1°C (between -9.9°C to 99.9°C); 1°C for other ranges
  • Output Relay Rating: Standard single-channel relay rated up to 10A (AC 125V–240V or DC 14V)
  • Sensor Input: NTC (10K 0.5%) waterproof thermistor probe

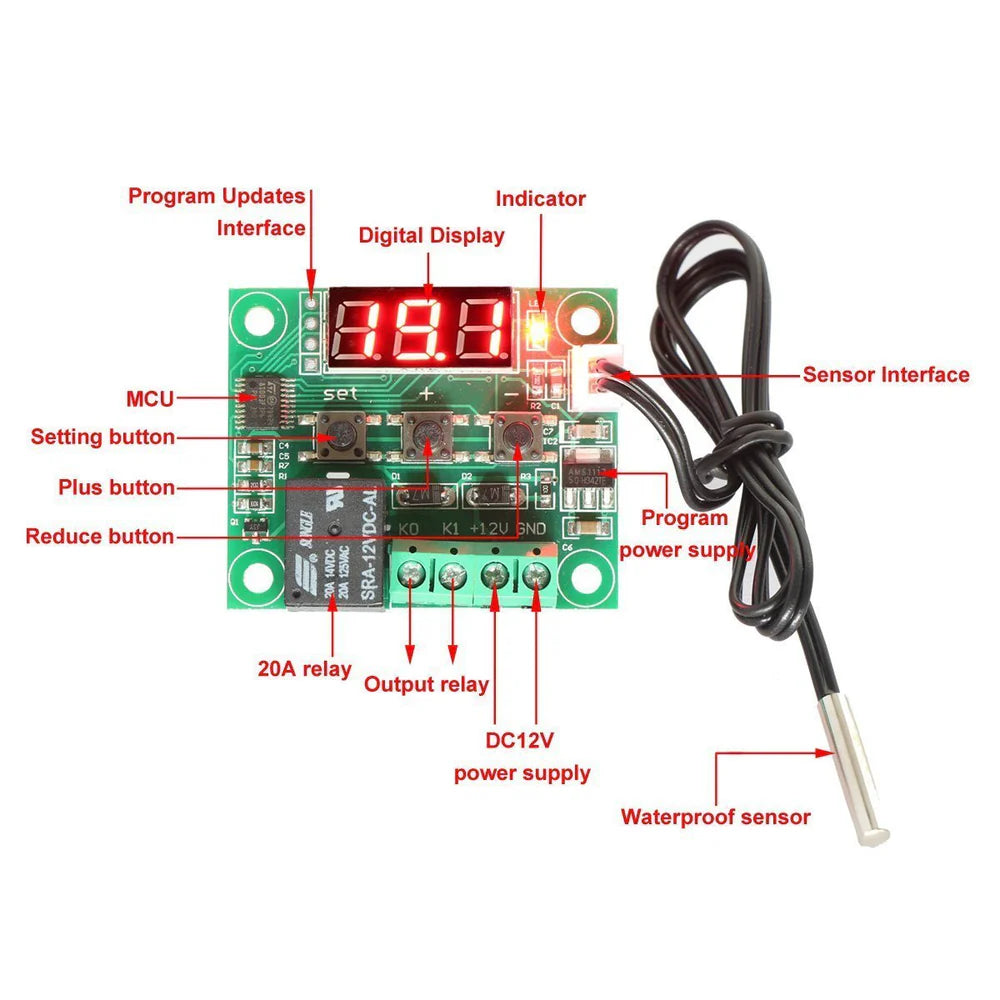

Basic Wiring Guide
The W1209 serves as an automated switch, not a direct power source. You must route external power through the onboard relay terminals to control your load.
  • V+ & GND: Connect to a stable 12V DC power supply to power the thermostat's screen and internal microchip.
  • K0 & K1 (Relay Terminals): Connect these in series with your load (e.g., a heater or cooling fan) and its independent power source. When the circuit is triggered, the module connects K0 to K1 internally to deliver power to your appliance.
How to Program the W1209
The interface consists of a 3-digit LED display and three physical buttons: SET, (+), and (-).
Setting the Target Temperature
  1. Press the SET button briefly; the displayed number will flash.
  2. Press (+) or (-) to adjust to your target temperature.
  3. Press SET again (or wait 2 seconds) to save the value.
Accessing Advanced Parameters (P0 - P6)
Hold down the SET button for 5 seconds to enter the system parameter menu. Use (+) and (-) to cycle through codes P0 to P6, then press SET to modify a chosen code:
  • P0 (Cooling / Heating Mode): Change between C (Cooling) and H (Heating).
    • Cooling: Relay closes when temperature rises above Setpoint + Hysteresis.
    • Heating: Relay closes when temperature drops below Setpoint - Hysteresis.
  • P1 (Hysteresis / Backlash Setting): Sets the temperature differential gap (range 0.1°C to 15°C; default is 2°C). This prevents your equipment from rapidly flickering on and off right at the target threshold.
  • P2 & P3 (Max / Min Limit caps): Sets safety limits on how high or low the target user setpoint can be adjusted.
  • P4 (Temperature Correction): Calibrates the sensor reading (range -7°C to +7°C) if your display differs slightly from a reference thermometer.
  • P5 (Delayed Start Time): Forces the relay to wait between 0 to 10 minutes before engaging. Useful for protecting refrigeration compressors from short-cycling.
  • P6 (High-Temperature Alarm): Disconnects the relay and triggers a warning if the environment hits an unsafe peak.
System Error Diagnostics
  • LL: The temperature sensor probe is disconnected or open-circuit.
  • HH: The measured temperature exceeds the 110°C limits; the relay shuts down for safety.
  • Factory Reset: Turn off the power, hold down both the (+) and (-) buttons simultaneously, and turn the power back on.
