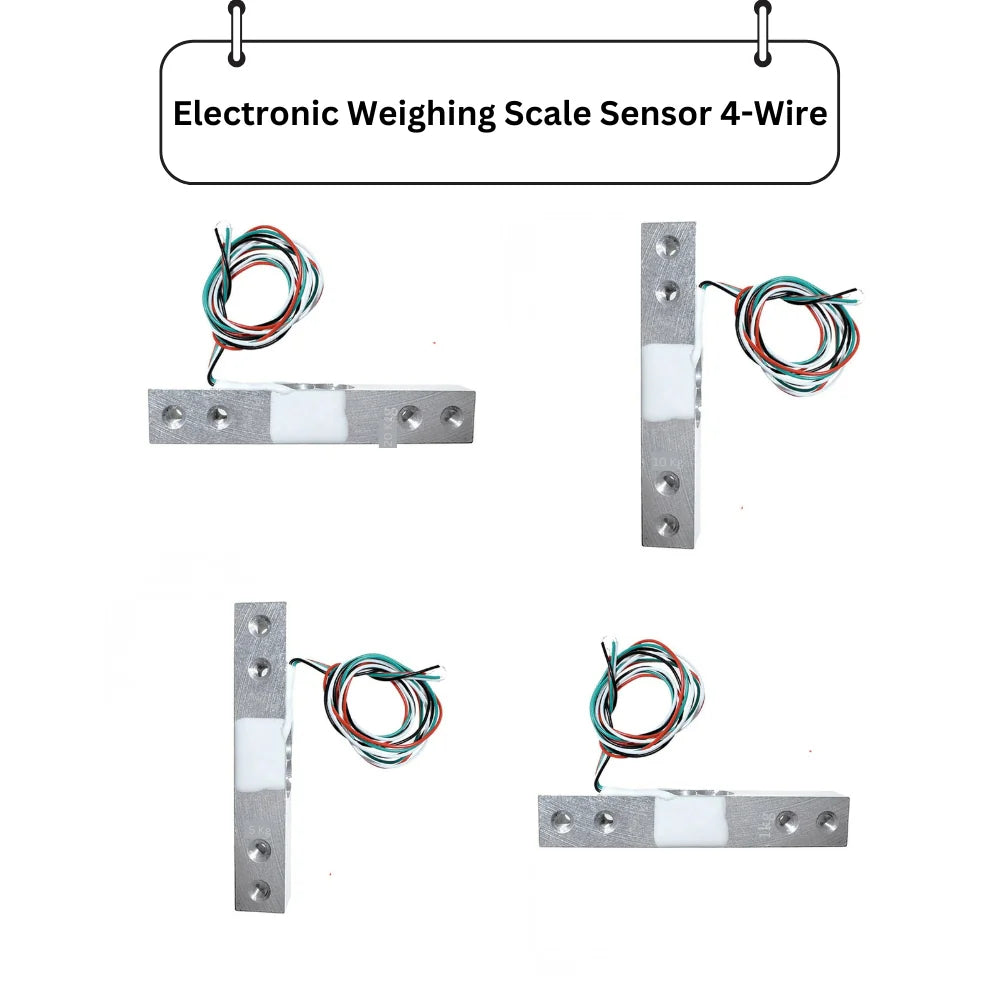

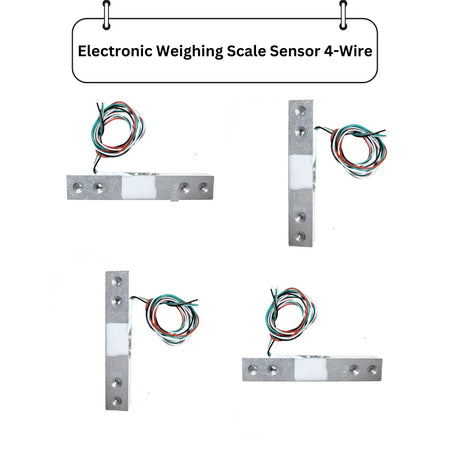

Weighing Load Cell Sensor 1Kg 5Kg 10Kg 20Kg YZC-133 With Wires

K-TECHNICS
Load

Secure checkout

Friendly support

Hassle-free returns

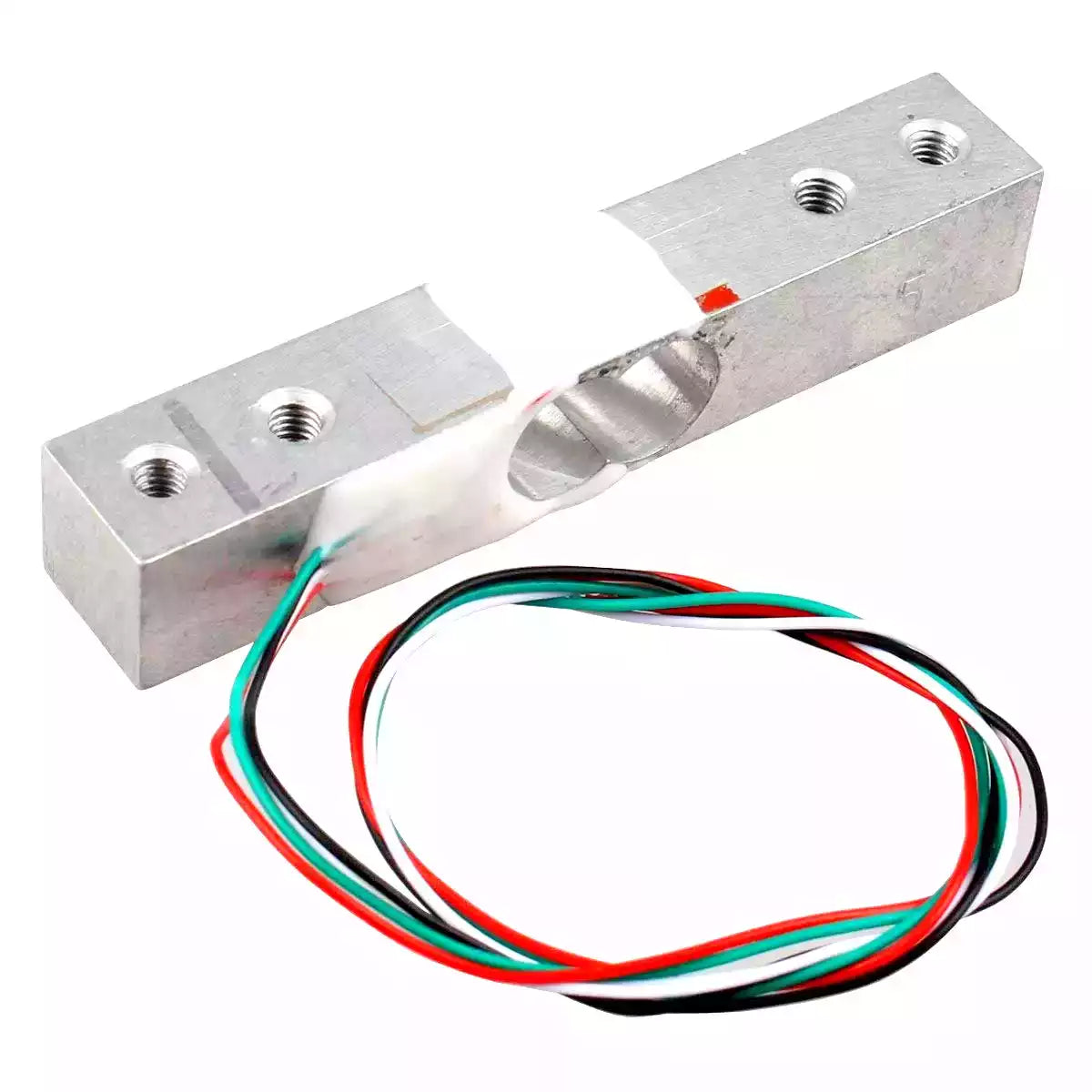

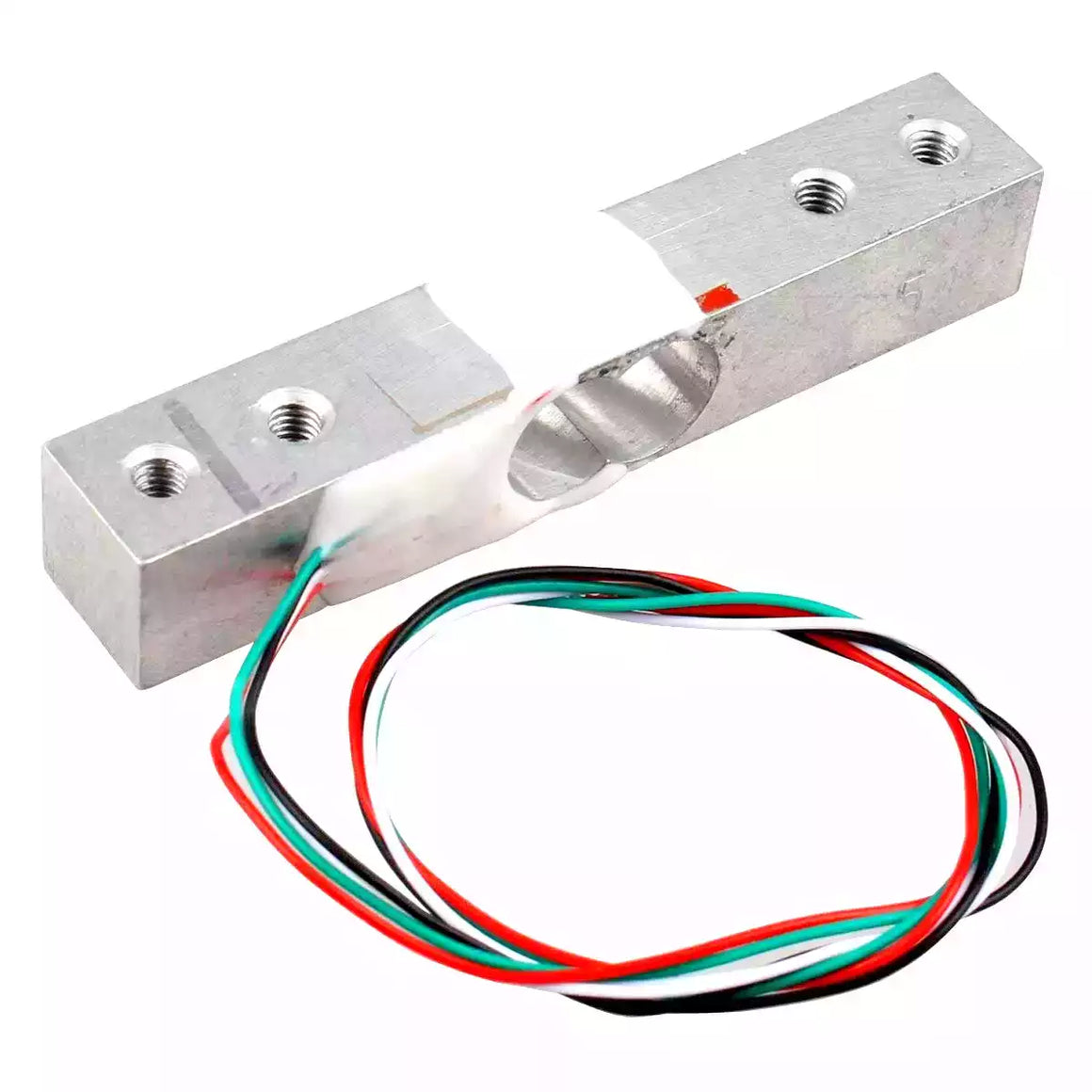

The YZC-133 is a straight-bar aluminum load cell used to measure weight in kitchen scales, smart feeders, and Arduino projects. It acts as a strain gauge, converting physical force into an electrical signal.
Core Specifications
  • Capacities: 1kg, 2kg, 3kg, 5kg, 10kg, or 20kg
  • Rated Output: 1.0 ± 0.15 mV/V
  • Excitation Voltage: 5V DC (10V maximum)
  • Dimensions: 80mm × 12.7mm × 12.7mm
Wiring Guide (Connect to an HX711 Amplifier)
  • 🔴 Red: Power Positive (E+)
  • ⚫ Black: Power Negative (E-)
  • 🟢 Green: Signal Positive (A+)
  • ⚪ White: Signal Negative (A-)
Installation Rules
  • Mounting: Bolt one end to a fixed base; leave the other end free to bend under weight.
  • Direction: Apply force only in the direction of the arrow label.
  • Caution: Do not press the white silicone coating in the center.
