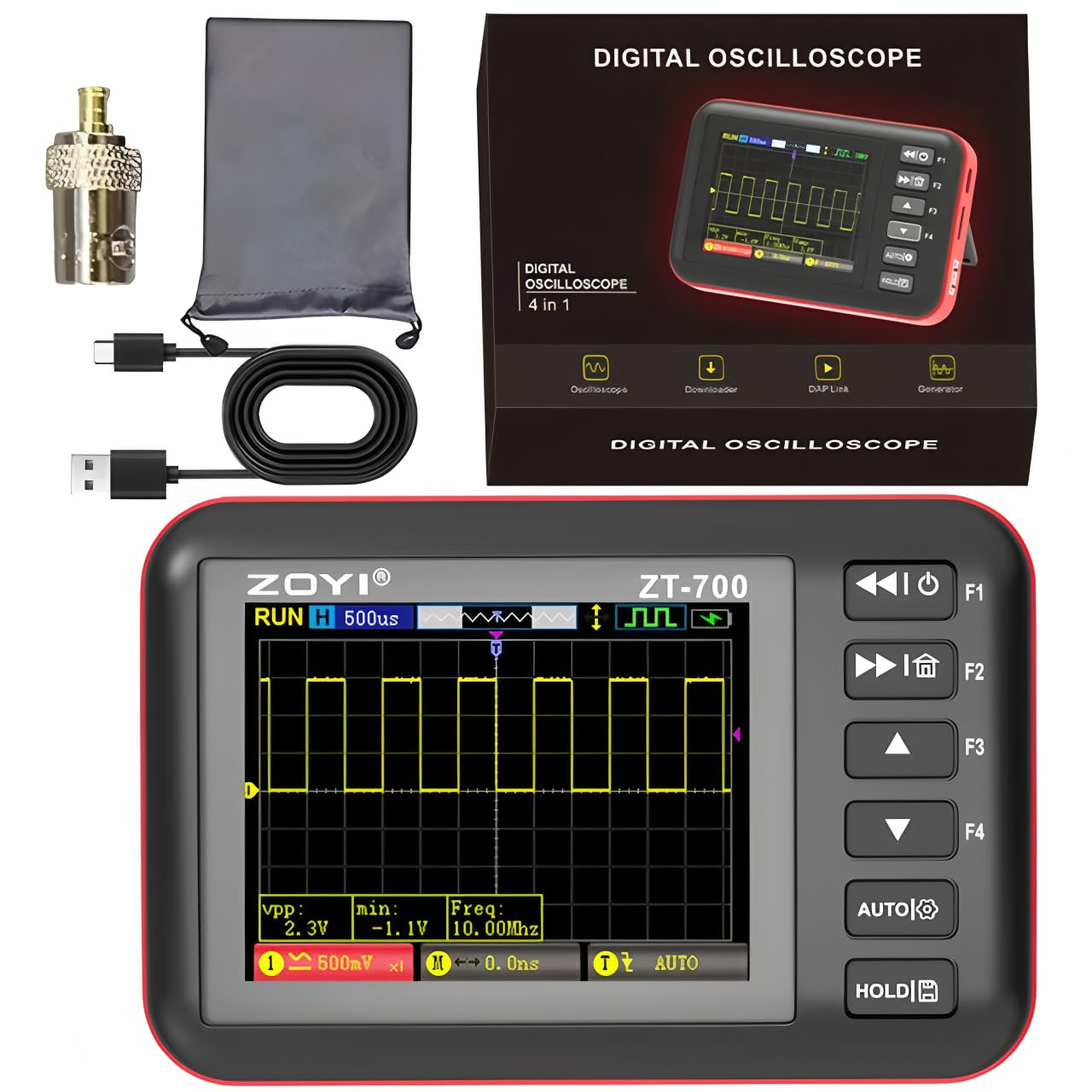

ZOYI ZT-700 4-in-1 Portable Oscilloscope & Signal Generator (10MHz)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

Despite weighing only 150 grams, the ZT-700 is an incredibly capable instrument. The single-channel oscilloscope boasts a 10 MHz bandwidth with a 48 MSa/s real-time sampling rate, allowing you to accurately capture and analyze logic signals and power ripples. Meanwhile, the built-in signal generator can output 22 different customizable waveforms at frequencies up to 100 kHz. With its integrated TF card slot for waveform saving, USB Type-C charging, and a long-lasting 1500mAh lithium battery, it completely untethers you from the workbench and allows you to troubleshoot hardware anywhere.

Key Features & Functional Advantages

  • 4-in-1 Multifunctionality: Seamlessly integrates a 10MHz oscilloscope, a 100kHz signal generator, a DAP emulator for microcontroller debugging, and an offline chip downloader into a single, affordable device.

  • High-Precision Oscilloscope: Captures fast logic transitions and electrical noise with a 10 MHz analogue bandwidth and a fast 48 MSa/s real-time sampling rate.

  • Versatile Signal Generator: Allows you to output 22 distinct waveform types (including sine, square, triangle, and noise) to actively test audio amplifiers, sensors, and logic gates.

  • Brilliant IPS Display: The 2.8-inch color screen provides a wide viewing angle and vibrant contrast, displaying real-time waveform data, peak values, and frequency measurements simultaneously.

  • Waveform Recording & Storage: Features a dedicated one-key save function that stores captured waveforms directly to an inserted TF card or allows for easy USB flash drive data transmission to your PC.

Perfect For

  • Embedded Hardware Development: Debugging complex logic signals, testing communication buses, and flashing microcontrollers directly on the workbench.

  • Field Electronics Repair: The ideal, lightweight tool for technicians who need to diagnose industrial machinery, automotive sensors, or remote sensor nodes without dragging out heavy AC-powered equipment.

  • Audio Equipment Testing: Using the built-in signal generator to inject a clean sine wave into an amplifier and using the oscilloscope to trace the signal and find exactly where distortion occurs.

  • Educational Labs: An incredibly affordable, robust, and easy-to-use learning tool for students mastering the basics of AC waveforms and circuit analysis.

Technical Specifications

  • Device Type: 4-in-1 Handheld Oscilloscope & Signal Generator

  • Oscilloscope Bandwidth: 10 MHz (Single Channel)

  • Real-time Sampling Rate: 48 MSa/s

  • Signal Generator Output: Up to 100 kHz (22 Waveform types)

  • Display: 2.8-inch IPS Color Screen

  • Power Source: Built-in 1500mAh 3.7V Lithium Battery (Type-C Rechargeable)

  • Storage Interface: MicroSD / TF Card Slot

  • Dimensions: 104mm x 69mm x 28mm

  • Weight: 150 grams
